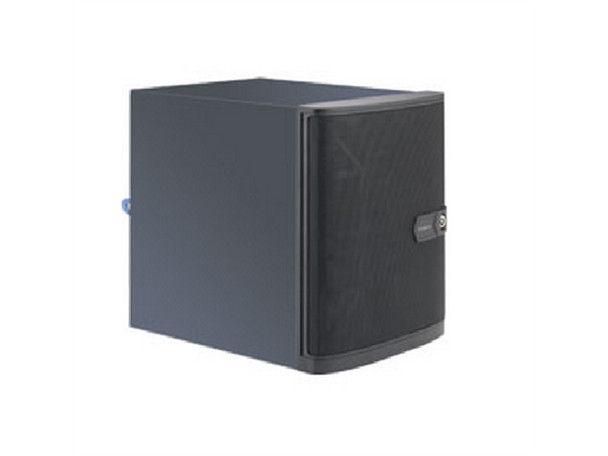

Supermicro System SYS-5028D-TN4T Xeon D-1541 4x3.5 SATA PCIE Mini Tower 250W

• Space-efficient, compact design

• Network Security Appliance

• Cloud and Virtualization

• High Performance NAS Servers

• Business Critical Applications

• Small and Medium Business



1. Intel® Xeon® processor D-1541,
Single socket FCBGA 1667;
8-Core, 45W


2. 4x 3.5" Hot-swap drive bays;
2x 2.5" fixed drive bays


3. 1x PCI-E 3.0 x16 (LP), 1x M.2
PCI-E 3.0 x4, M Key 2242/2280


4. Up to 128GB ECC RDIMM DDR4
2133MHz or 64GB ECC/non-ECC
UDIMM in 4 sockets


5. Dual 10GbE LAN and Intel® i350-AM2
dual port GbE LAN


6. 250W Flex ATX Multi-output Bronze
Power Supply

Motherboard
Super X10SDV-TLN4F

Processor/Cache
CPU:
Intel Xeon processor D-1541
FCBGA 1667 supported
CPU TDP support 45W
System-on-Chip

System Memory
Memory Capacity:
4x DDR4 DIMM sockets
Supports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM

Memory Type:2133/1600/1333MHz ECC DDR4 SDRAM
DIMM Sizes:32GB, 16GB, 8GB, 4GB
Memory Voltage:1.2 V

Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
SATA:SoC controller for SATA3 (6Gbps) ports

Network Controllers:
Dual LAN via Intel i350-AM2 Gigabit Ethernet
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-T, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics:BMC integrated ASPEED AST2400

Input / Output
SATA:6x SATA3 (6Gbps) ports

LAN:
2x RJ45 Gigabit Ethernet LAN ports
2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port

USB:
2x USB 3.0 ports (rear)
2x USB 2.0 ports (front panel)

Serial Port:1x COM port (header)
DOM:1x SATA DOM (Disk on Module) power connector
VGA:1x VGA Port
Others:TPM 1.2 header

Management
Software:
Intel Node Manager
IPMI (Intelligent Platform Management Interface) 2.0 with KVM support
SuperDoctor 5
Watch Dog
NMI
SUM

Form Factor
Mini Tower

Available Colors
Black

Front Panel
Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED

Expansion Slots
PCI-E:
1x PCI-E 3.0 x16 (Low Profile) slot
1x M.2 PCI-E 3.0 x4, M Key 2242/2280

Drive Bays
HDD:
4x 3.5" Hot-swap drive bays
2x 2.5" internal drive bays
Peripheral:1x slim DVD-ROM drive bay (shared with 1x 2.5" internal drive bay)

Power Supply
250W Flex ATX Multi-output Bronze Power Supply
AC Voltage:100 - 240V, 50 - 60Hz, 5Amp
+5V:Max:14 Amp Min:0.5 Amp
+12V:Max:18 Amp Min:1 Amp at 100V-240V
-12V:Max: 3 Amp Min: 0 Amp
+3.3V:Max: 12 Amp Min: 0.3Amp
5VSB:Max: 2.5 Amp Min: 0 Amp
Certification: Bronze Certified

System BIOS
BIOS Type:128Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features:
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI
RTC (Real Time Clock) Wakeup

RoHS
RoHS Compliant

Item Dimension (L"xW"xH"):
9.45 x 8.27 x 11

Weight:
15 lb

Warranty Information:
1 year
