Supermicro

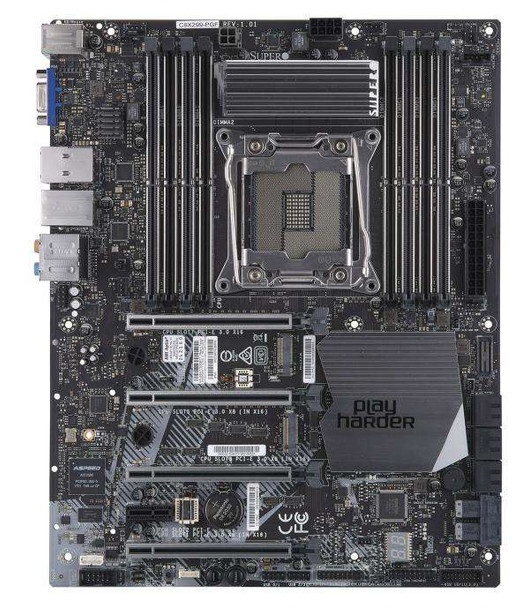

Supermicro MB MBD-C9X299-PGF-B Ci9 7 5 Max.128GB X299 DDR4 SATA PCIE VGA ATX
We Ship worldwide all products located in or near Surrey, BC otherwise contact us prior to exporting outside of Canada.
No local pickups are allowed on any order. Same-Day Delivery Cutoff is 10AM PST.
- SKU:
- 208031
- UPC:
- 672042296095
- MPN:
- MBD-C9X299-PGF-B
- Condition:
- New
- Availability:
- Ships within 2 Business Days
- Weight:
- 2 724 Grams
- Item Shipping Location:
- Markham, ON
- Item Postal Code:
- L3R 4C1
- Shipping Policy:
- Please contact Sales
- Price and Quantity Last updated:
- 2/1/2024 4:51:03 PM
Description
2.Intel® X299
3.128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 8 DIMM slots
4.4 PCI-E 3.0 x16,1 PCI-E 3.0 x1***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCI-E3.0x1 slots***
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key (RAID 0,1 support)
U.2 Interface: PCI-E 3.0 x4
5.1 VGA port
6.6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7.Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Aquantia 5G LAN chip AQC108
Physical Stats
Form Factor:ATX
Dimensions:12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU:Intel CoreTM i5 X-series Processor, Intel CoreTM i7 X-series Processor, Intel
CoreTM i9 Extreme X-series Processor, Intel CoreTM i9 X-series Processor, CPU TDP support 165W
System Memory
Memory Capacity:128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 8 DIMM slots
Memory Type:2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
DIMM Sizes:4GB, 8GB, 16GB
Memory Voltage:1.2V
On-Board Devices
Chipset:Intel X299
SATA:6 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI:ASPEED AST2500
Network Controllers:Single LAN with Intel Ethernet Controller I210-ATSingle LAN with Aquantia 5G LAN chip AQC108
Audio:ALC 1220 HD Audio
Input / Output
LAN:2 RJ45 Gigabit Ethernet LAN ports
USB:4 USB 2.0 ports (4 headers),
4 USB 3.0 ports (2 rear + 2 headers),
4 USB 3.1 ports ( + 3 Type A + 1 Type C)
Video Output:1 VGA port
Serial Port / Header:1 COM Port (1 header)
Expansion Slots
PCI-E:4 PCI-E 3.0 x16,
1 PCI-E 3.0 x1
4xPCI-E3.0 x16
Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCI-E3.0x1 slots
M.2M.2 Interface: PCI-E 3.0 x4
Form Factor: M-Key 2280, 22110 (RAID 0,1 support)
M-Key for SSD and Optane
System BIOS
BIOS Type:UEFI 128Mb
Management
Software:SuperDoctor 5, Watchdog
PC Health Monitoring
Voltage:+12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN:5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature:N/A
LED:N/A
Other Features:ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL
Item Dimension (L inchxW inchxH inch)
NA
Weight
5.00lb
Warranty Information
1 Year
