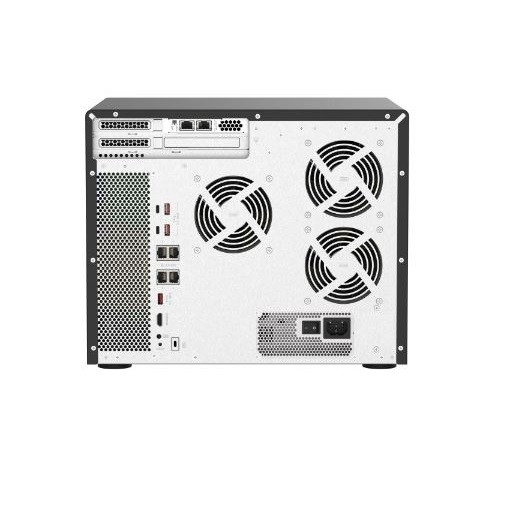

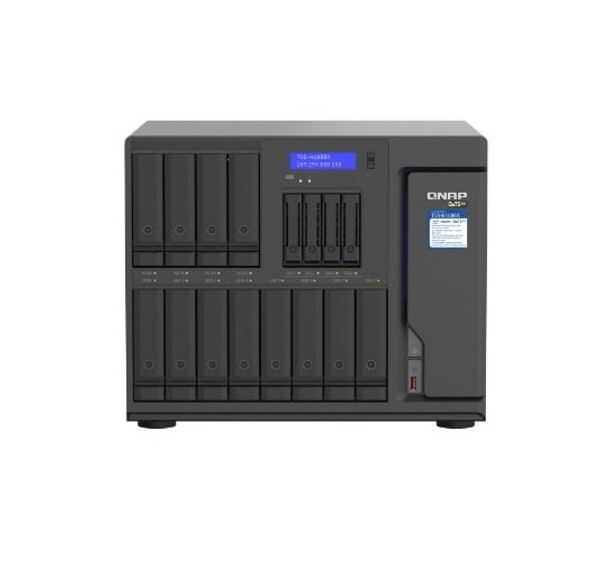

QNAP NAS TVS-h1688X-W1250-32G-US 16-Bay TurboNAS Xeon W-1250 32GB DDR4 550W

Intel® Xeon® W-1250 6-core 3.3 GHz processor (Bust up to 4.7 GHz), 32 GB DDR4 ECC memory (2 x 16 GB)

Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory

Intel® Xeon® W processors are designed for a wide range of creative professionals. Powered by an Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Burst up to 4.7 GHz), the TVS-h1688X has enormous processing power to drive virtual machine performance. The integrated Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of NAS data. With dual-channel modules and 4 Long-DIMM slots, the TVS-h1688X’s DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.

Streamline video editing and 4K workflows with Thunderbolt™ 3 connectivity

You can install two QXP-T32P Thunderbolt™ 3 expansion cards (sold separately) to the PCIe Gen 3 x4 slots of the TVS-h1688X and transform it into a Thunderbolt™ 3 NAS with quad-port Thunderbolt™ 3 connectivity. Up to four Thunderbolt™-equipped workstations can be connected to the TVS-h1688X to achieve greater teamwork efficiency in 4K workflows, file storage, backup, and sharing. An SLC/MLC SSD RAID 5 configuration is recommended for the highest possible performance and the best storage allocation for your NAS.

Thunderbolt™ 3 + 10Gb Ethernet: perfect for studios and post-production houses

The TVS-h1688X can simultaneously run general Ethernet services with the built-in 10GBASE-T LAN card in addition to the Thunderbolt™ 3 network, completely independently and with no bandwidth interference. The media resources in the TVS-h1688X can be easily accessed by Thunderbolt™ and Ethernet workstations for different concurrent tasks with increased productivity.

CPU
Intel Xeon W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz)
CPU Architecture
64-bit x86

Graphic Processors
Intel UHD Graphics P630
Floating Point Unit
Yes

Encryption Engine
Yes (AES-NI)
Hardware-accelerated Transcoding
Yes

System Memory
32GB ECC UDIMM DDR4 (2 x 16 GB)
Maximum Memory
128 GB (4 x 32 GB)

Memory Slot
4 x Long-DIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory
5GB (Dual boot OS protection)

Drive Bay
12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
Drive Compatibility
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch SATA solid state drives

Hot-swappable
Yes
M.2 SSD Slot
2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots

SSD Cache Acceleration Support
Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
4 (also support 10M)

5 Gigabit Ethernet Port (5G/2.5G/1G/100M)
Optional via an adapter
10 Gigabit Ethernet Port
2 x 10GBASE-T (10G/1G)

25 Gigabit Ethernet Port
Optional via an adapter
Wake on LAN (WOL)
Yes
Only the 2.5GbE port

Jumbo Frame
Yes
Thunderbolt Port
Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter

PCIe Slot
3
Slot 1: PCIe Gen3 x8
Slot 2: PCIe Gen3 x4
Slot 3: PCIe Gen3 x4
Slot 1 is preinstalled with a 2-port 10GbE network adapter.
USB 3.2 Gen 2 (10Gbps) Port
2 x Type-C
4 x Type-A

HDMI Output
1, HDMI 1.4b (up to 4096 x 2160 at 30Hz)
Audio Input
- (No longer available on units manufactured on or after 2021/1/1)

Audio Output
- (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)
Form Factor
Tower

LED Indicators
System status, LAN, USB, Disk 1-16, M.2 SSD 1-2
LCD Display/ Button
Yes

Buttons
Power, Reset, USB Auto Copy
Operating temperature
0 - 40^oC (32^oF - 104^oF)

Storage Temperature
-20 - 70^oC (-4^oF - 158^oF)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27^oC (80.6^oF)

Power Supply Unit
550W PSU, 100-240V
Power Consumption: HDD Sleep Mode
91.26 W

Power Consumption: Operating Mode, Typical
108.67 W
Tested with drives fully populated.
Fan
System fan: 3 x 80mm, 12VDC
CPU fan: 2 x 97mm, 12VDC

Sound Level
25.8 db(A)
System Warning
Buzzer
