MSI

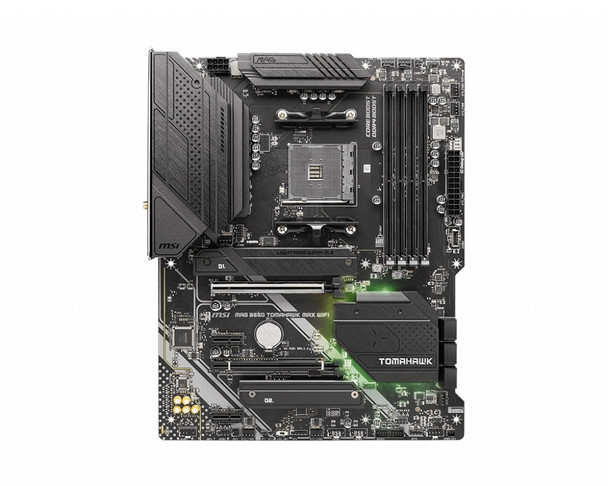

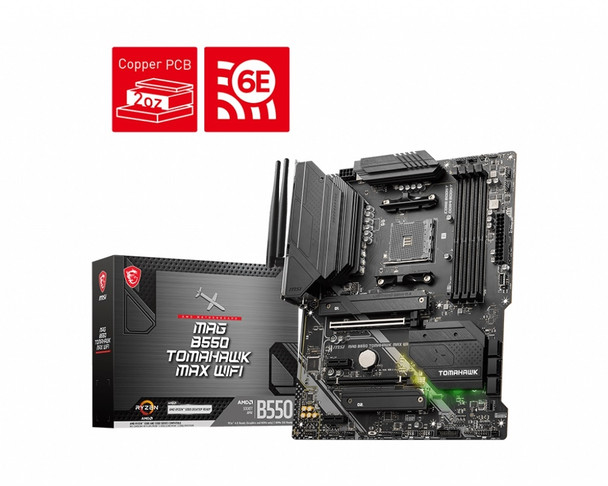

MSI MB MAG B550 TOMAHAWK MAX WIFI AM4 Max128GB DDR4 PCIE ATX Retail
We Ship worldwide all products located in or near Surrey, BC otherwise contact us prior to exporting outside of Canada.
No local pickups are allowed on any order. Same-Day Delivery Cutoff is 10AM PST.
- SKU:
- 263059
- UPC:
- 824142286685
- MPN:
- B550TMHWKMWI
- Condition:
- New
- Availability:
- Ships within 2 Business Days
- Weight:
- 2 724 Grams
- Width:
- 28 (cm)
- Height:
- 11 (cm)
- Depth:
- 36 (cm)
- Item Shipping Location:
- Richmond, BC
- Item Postal Code:
- V6W 1G3
- Shipping Policy:
- Ships to Canada and USA
- Price and Quantity Last updated:
- 5/15/2024 12:35:07 AM
Description
Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield Frozr is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
10 + 2 + 1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 10 digital CPU power phases. Combining exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.
CPU (MAX SUPPORT)
RYZEN 9
SOCKET
AM4
CHIPSET
AMD B550 Chipset
DDR4 MEMORY
5100(OC)/ 5000(OC)/ 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
SATAIII
6
PCI-E X1
2
M.2 SLOT
2
RAID
0/1/10
LAN
1x Realtek RTL8125B 2.5G LAN
USB 3.2 PORTS (FRONT)
1(Gen 1, Type C), 2(Gen 1, Type A)

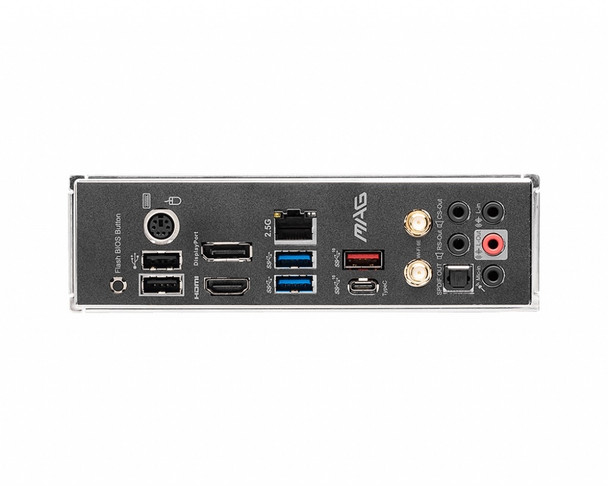

USB 3.2 PORTS (REAR)
1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
2
AUDIO PORTS (REAR)
5+ Optical S/PDIF (Realtek ALC897 Codec)
DISPLAYPORT
1
HDMI
1
