HighPoint CC SSD7580B 8PT PCIe4.0 x16 8x U.2 Ports NVMe RAID Controller RTL

The SSD7580B is the industrys fastest single-card PCIe Gen4 NVMe RAID Solution. The dedicated PCIe 4.0 x16 host interface and 8 independent device channels are capable of supporting over 100TB of hot-swappable NVMe storage, at speeds up to 28,000MB/s
Key Features
Dedicated PCIe 4.0 x16 host interface
8x U.2 or M.2 NVMe PCIe 4.0 SSDs
True NVMe Hot-Swap Capability (Surprise Add or Remove)
Supports over 100TB of storage at 28,000MB/s
Versatile Cabling Solutions: SFF-8639, SFF-8643 and SFF-8611 (Oculink)
Compact, Half-Height form factor

Product feature
SSD7580B
Bus Interface
PCI-Express 4.0 x16
Number of Channel / Port
8x U.2 NVMe port (SFF-8654 Dedicated Dual PCIe 4.0 x4 per port)
Data Transfer Rate
16GT/s
Number of device
8x U.2 NVMe SSD
SSD Form Factor
2.5" U.2
Form Factor
Low Profile

Supported Operating Systems
Windows
Windows 11 and 10, Windows Server 2022/Server 2019/Server 2016/Server 2012 R2, Microsoft Hyper-V Only supports 64 bit operating system.
Linux
RHEL/Debian/Ubuntu/Fedora/Proxmox/Xenserver (Linux kernel 3.10 and later) Arch linux(Kernel 5.17.5 and above) Only supports 64 bit operating system.

System Requirements
Mac Platforms:
Not supported
PC Platforms:
Any PC Systems or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required). Note: PCIe 4.0 required for maximum performance.
Secure Boot(PC platforms)
Windows : Support Secure Boot Disable and Enable(Please download the UEFI driver corresponding to Secure Boot on the software download page)
Linux : Support Secure Boot disable
Hotplug
Yes
Cooling System
Anodized Aluminum Heat sink with built-in Low-Noise fan

NVMe Configurations
RAID Support
Single (single-disk), RAID 0, 1, 10
TRIM RAID Support
Single (single-disk), RAID 0, 1, 10

Storage Mode - NVMe
Data RAID (Non-Bootable)
Windows,Linux
Boot RAID
Windows: Windows10, 11 Windows Server 2016,2019,2022
kernel3.10 and later
Mac: Not support

NVMe RAID Management
Management Suites
Browser-Based management tool
CLI (Command Line Interface- scriptable configuration tool)
API package
SMTP Email Alert Notification
Yes
Alarm Buzzer
Yes
Storage Health Inspector
Yes
NVMe SMART status
Yes
Automatic and configurable RAID Rebuilding Priority
Yes
Auto resume incomplete rebuilding after
Yes
Single-RAID or Multi-RAID Arrays per Controller
Yes
Cross-Sync RAID Solution Across Controllers
Yes (Windows,Linux)

Advanced RAID features
Flash ROM for Upgradeable UEFI
Yes
Bootable RAID Array
Yes
Multiple RAID Partitions supported
Yes
Online Array Roaming
Yes
RAID Quick Initialization for fast array setup
Yes
Global Hot Spare Disk support
Yes

Operating Environment
Work Temp
+5^oC - + 55^oC
Storage Temp
-20^oC - +80^oC
Operating Voltage
PCI-e: 12V, 3.3V
Power
Typical: 13.72W
MTBF (Mean Time Before Failure)
920,585 Hours
Certification / Approval
CE, FCC, RoHS, REACH, WEEE

Kit Contents
1x SSD7580B
1x Quick Installation Guide

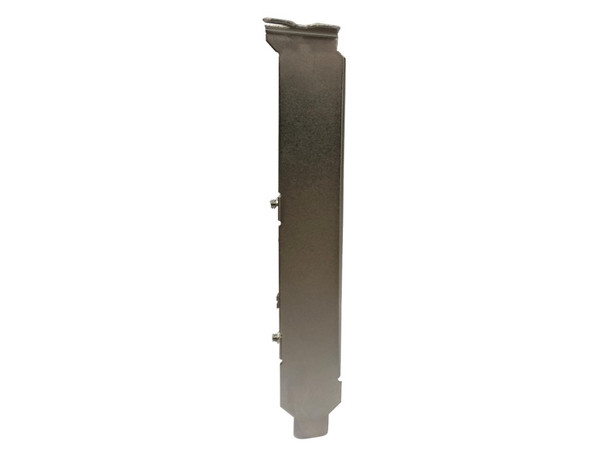

1x Low-Profile bracket

Item Dimension (L"xW"xH")
7 x 8 x 2

Weight
1 lb

Warranty Information
2 Years
