Gigabyte Motherboard Z790 D AC Z790 LGA1700 Max192GB DDR5 ATX Retail

Featuring robust connectivity options, multiple expansion slots, and enhanced performance, the GIGABYTE Z790 D AC LGA 1700 ATX Motherboard gives new and seasoned builders a solid foundation for their next rig.

At the heart of the Z790 D AC motherboard is an Intel LGA 1700 socket, allowing you to install a variety of 12th, 13th, and 14th Gen processors. Four DDR5 RAM slots allow you to install up to 192GB of memory, enhancing multitasking and render speeds. You get six SATA III slots and three M.2 PCIe SSD interfaces for your storage drives, giving you plenty of space for your favorite games. Multiple expansion slots allow you to install a wide range of graphics and utility cards, featuring one PCIe 5.0 x16, one 4.0 x16 (in x4 mode), two 3.0 x16 (in x1 mode), and two 3.0 x1 slots. USB-A 2.0 ports support low-powered devices such as mice and keyboards. USB-A 3.2 Gen 1 and Gen 2 ports give you enhanced data transfer speeds up to 5 and 10 Gb/s, respectively, as well as support for resource-demanding devices. Bluetooth 5.1 technology allows you to use wireless peripherals such as controllers, headphones, and more. Connect to your network with 2.5 Gigabit Ethernet and Wi-Fi 5 (802.11ac) connectivity, allowing you to quickly download your games as well as stream your favorite media.

Power Design
Embracing an ultra-durable design, the Z790 D AC leverages a 12+1+1 and 60A DrMOS electrical layout, giving users a stable and reliable connection.
PCIe 5.0 Technology
A single PCIe 5.0 x16 slot offers up to 128 GB/s transfer speed, suitable for powerful gaming graphics cards.
DDR5 RAM
Experience enhanced rendering and multitasking performance with DDR5 RAM implementation. You can equip the Z790 D AC with up to 192GB of memory with speeds up to 7600 MHz, providing you with quick response times and stable operation.
Cooling Design
Featuring enlarged and stylish VRM and M.2 Thermal Guard heat sinks, the Z790 D AC leverages an advanced cooling solution that properly maintains thermal levels, preventing performance throttling and keeping you up and running during prolonged work sessions. Smart Fan 6 utilizes multiple temperature and fan headers to maintain proper thermal performance.
Personalization
With GIGABYTE RGB Fusion you can personalize your system with a wide array of colors and effects. The UEFI BIOS and GIGABYTE Control Center allow you to fine-tune various parameters of your system with an easy-to-use interface for quick adjustments. Multi-key can be customized to turn off your lighting, boot directly to the BIOS, or enable Safe Mode.
DIY Friendly
PCIe EZ-Latch makes installation and removal of graphics cards easy with an enlarged clip. Q-Flash Plus enables you to perform BIOS updates with only the power connectors attached.

Chipset
Intel Z790
CPU Socket
LGA 1700
Memory Slots
4x 288-Pin
Memory Support
DDR5 4000, 4400, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MHz
M.2
1x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
Expansion Slots
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
2x PCIe 3.0 x1
Wi-Fi
Wi-Fi 5 (802.11ac) with MU-MIMO Support
Form Factor
ATX
CPU
Chipset
Intel Z790
CPU Socket
LGA 1700

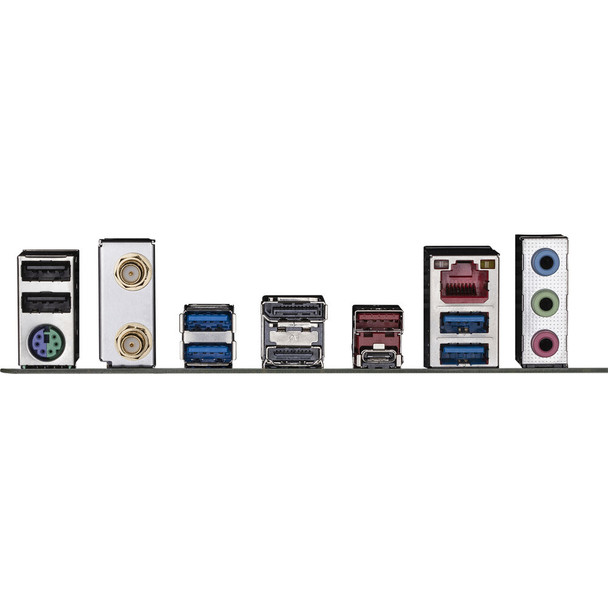

Back Panel I/O
USB
1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt
No
Display
1x DisplayPort
1x HDMI
Audio
3x 1/8" / 3.5 mm
Ethernet / Controller
1
PS/2
1x Combo
Wi-Fi Antenna
2x Connector
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR5 4000, 4400, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MHz
Maximum Capacity
192 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA
6x SATA III
M.2
1x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
RAID Support
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
Internal I/O
Expansion Slots
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
2x PCIe 3.0 x1
USB
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Multi-GPU Support
AMD CrossFireX
Air Cooling
1x 4-Pin CPU
3x 4-Pin System
Liquid Cooling
1x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard
2x 8-Pin ATX
Security
TPM Header
LED Header
2x RGB
Audio
1x S/PDIF
Diagnostics
Clear CMOS, Flash BIOS, Reset
Add-On
2x Thunderbolt Header
BIOS
ROM
256 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec
Realtek (7.1-Channel)
DAC
No
Wireless
Wi-Fi
Wi-Fi 5 (802.11ac) with MU-MIMO Support
Bluetooth
5.1
Software
OS Compatibility
Windows 10 to 11
Physical
Form Factor
ATX
Dimensions
9.6 x 12.0" / 24.4 x 30.5 cm
Packaging Info
Package Weight
3.625 lb
Box Dimensions (LxWxH)
13.4 x 11.1 x 3.3"
