Description

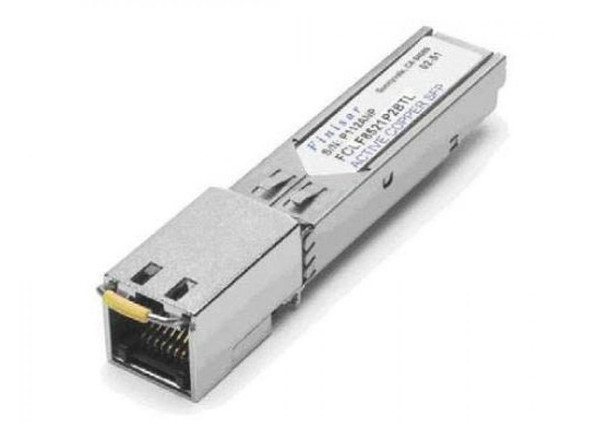

Finisar's FCLF8520P2BTL, FCLF8521P2BTL and FCLF8522P2BTL 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. They are RoHS compliant and lead-free per Directive 2011/65/EU and Finisar Application Note AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
Features:
•Up to 1.25Gb/s bi-directional data links
•Hot-pluggable SFP footprint
•Fully metallic enclosure for low EMI
•RoHS compliant and Lead Free
•Low power dissipation (1.05 W typical)
•Compact RJ-45 connector assembly
•Access to physical layer IC via 2-wire serial bus
•10/100/1000 BASE-T operation in host systems with SGMII interface
•Extended case temperature range: -40°C to 85°C
View AllClose
Features:
•Up to 1.25Gb/s bi-directional data links
•Hot-pluggable SFP footprint
•Fully metallic enclosure for low EMI
•RoHS compliant and Lead Free
•Low power dissipation (1.05 W typical)
•Compact RJ-45 connector assembly
•Access to physical layer IC via 2-wire serial bus
•10/100/1000 BASE-T operation in host systems with SGMII interface
•Extended case temperature range: -40°C to 85°C
Distance
100 m
Data Rate (Max)
1.25 Gb/s
Protocol
1000 Base-T Compliant
Low End Case Temperature
-40 C
High End Case Temperature
85 C
Diagnostics
NA
Transmitter
NA
Receiver
NA
Voltage Supply
3.3
Connector
RJ-45
Item Dimension (L"xW"xH")
3 x 1 x 1
Weight
1.00 lb
Warranty Information
1 Year
