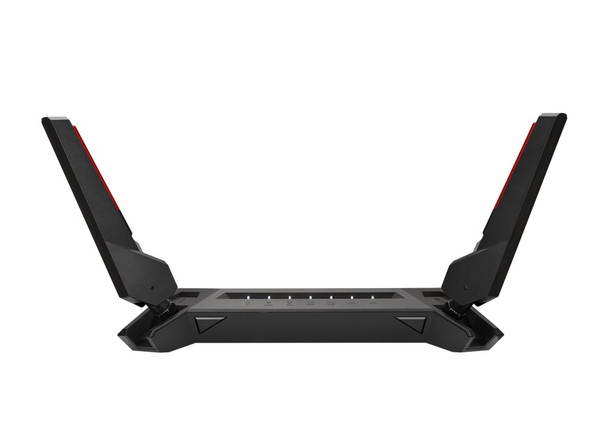

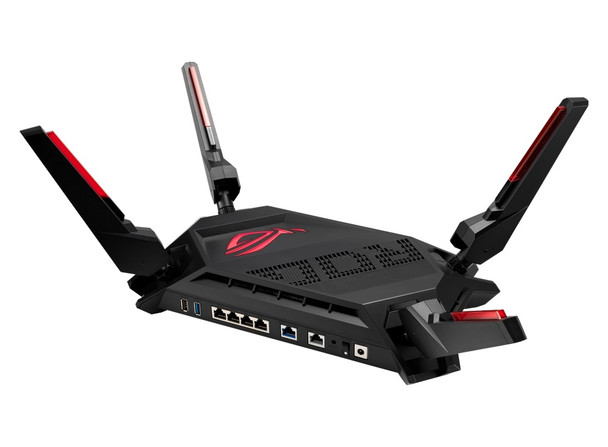

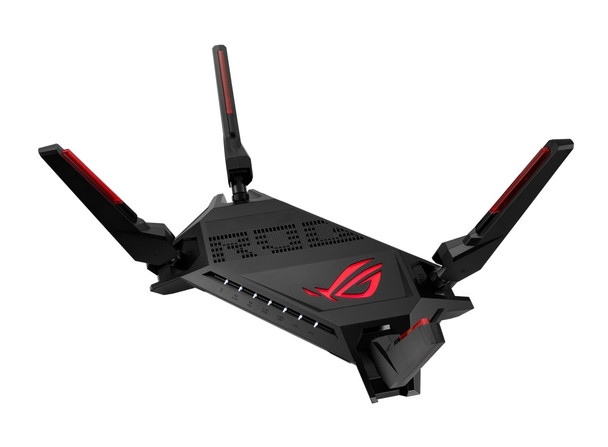

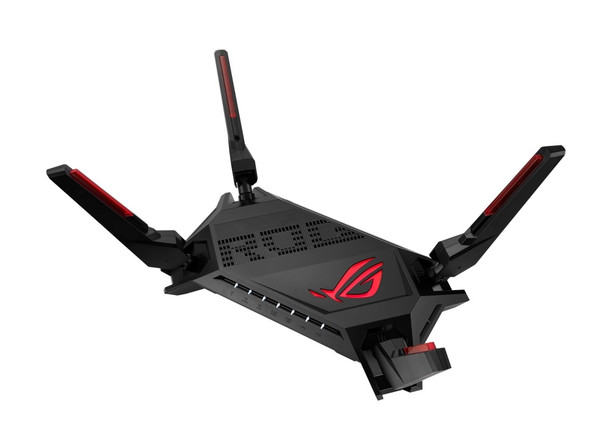

ASUS Router GT-AX6000 CA ROG Rapture IEEE WiFi6 Dual-Band Gaming Router Retail

DON'T STOP THE GAME

The futuristic ROG Rapture GT-AX6000 gaming router lets you connect more devices, and upgrades your gaming experience to the next level. With WiFi 6 speeds up to 6000 Mbps, it’s always primed for the biggest battles. The awesome styling, with new-look red and black detachable antennas and fully customizable ASUS Aura RGB lighting effects, makes GT-AX6000 a router that demands to be seen!


Flexible network ports functions

Dual 2.5G Network Ports

GT-AX6000 has two dual-function WAN/LAN 2.5 Gbps Ethernet ports that support link aggregation and load balancing, giving you the flexibility to give massive bandwidth to connected devices or take advantage of ultra-high-speed internet connections.

WAN Aggregation

WAN aggregation lets you to combine a 2.5 Gbps port and a 1 Gbps port to unlock up to 3.5 Gbps of WAN bandwidth, fast enough for even the latest ultra-high-speed ISPs. This massive internet bandwidth can be shared via WiFi 6 or the second 2.5 Gbps LAN port.

LAN Aggregation

Using LAN aggregation you can bond two 1 Gbps LAN ports together to create a 2 Gbps LAN connection, which is great for supplying extra bandwidth to heavy-duty network devices such as your compatible NAS or desktop PC.


Beyond Performance

GT-AX6000 is powered by a 2.0 GHz quad-core 64-bit CPU, giving it the performance to handle even the most demanding gaming network. It delivers maximum network throughput by 18%* for lightning-fast, accelerating data transfers and optimizing your gaming experience.

*Disclaimer: Compared with former WiFi 6 platform

Model Name
GT-AX6000

Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6

Product Segment
AX6000 ultimate AX performance

AX technology
Yes

Data Rate
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna
External antenna x 4

Transmit/Receive
2.4 GHz 4 x 4
5 GHz 4 x 4

Processor
2.0 GHz quad-core processor

Memory
256 MB Flash, 1 GB RAM

Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth,

Operating Frequency
2.4G Hz / 5 GHz

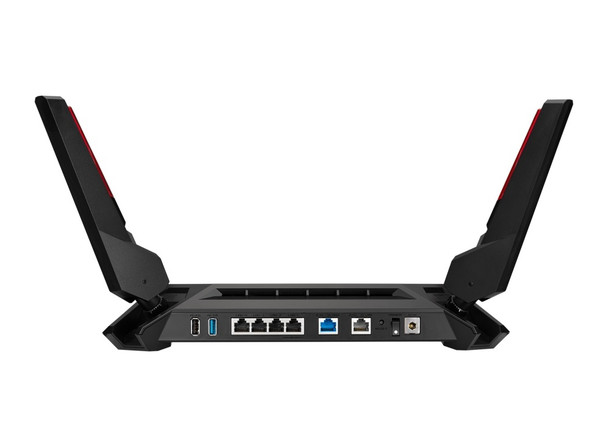

Ports
RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,
RJ45 for 2.5 Gigabits BaseT for LAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,
USB 2.0 x 1

Button
WPS Button,
Reset Button,
Power Button,
LED Control Button

LED Indicator
Power x 1
2.4GHz x 1
5GHz x 1
2.5G WAN x 1
2.5G LAN x 1
LAN x 1
WPS x 1

Power Supply
AC Input : 110V to 240V(50 to 60Hz)
DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current

Package content
GT-AX6000 WiFi 6 Dual-Band Gaming Router
RJ-45 cable
Power Adapter
Quick Start Guide
Warranty Card

AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes

Router APP
ASUS Router APP : Yes

Game
Game Boost/acceleration : Yes
ROG_First : Yes
OpenNAT (Game Profile) : Yes
Gaming port : Yes

AiProtection
AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes
