Description
Marketing Information
Fast. Stable. Everywhere.

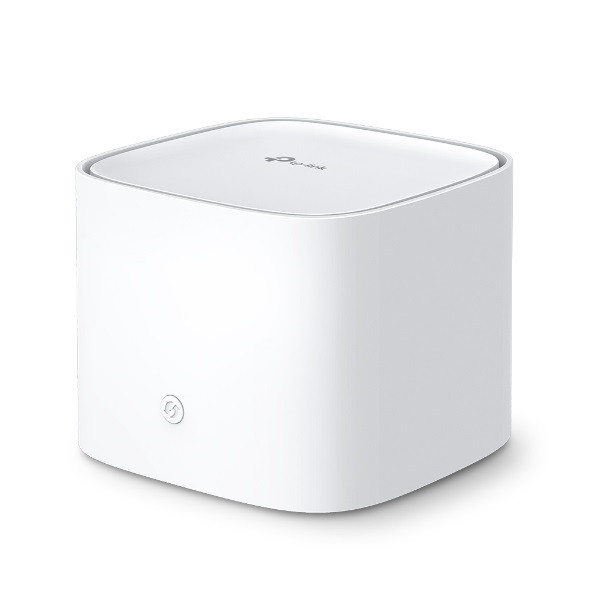

AX3000 Whole Home Mesh WiFi System
HX510
Advanced Mesh Powered by WiFi 6
Armed with WiFi 6 technology, HX510 provides faster speeds up to 3.0 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.†
Extensive WiFi Coverage
Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.
Whole Home Coverage
Empowered by EasyMesh technology, HX510 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX510 unit whenever you want.**
Seamless Roaming with One WiFi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience. ‡
More Connections, No More Buffering
Enhanced by WiFi 6, featuring with OFDMA and 160 MHz bandwidth, HX510 allows you to connect more devices simultaneously. Enjoy a more efficient network that loads faster without dragging down performance. †
2-in-1 Router and Access Point
Flexible and multifunctional, HX510 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.
AX3000 Whole Home Mesh WiFi System
HX510
Advanced Mesh Powered by WiFi 6
Armed with WiFi 6 technology, HX510 provides faster speeds up to 3.0 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.†
Extensive WiFi Coverage
Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.
Whole Home Coverage
Empowered by EasyMesh technology, HX510 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX510 unit whenever you want.**
Seamless Roaming with One WiFi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience. ‡
More Connections, No More Buffering
Enhanced by WiFi 6, featuring with OFDMA and 160 MHz bandwidth, HX510 allows you to connect more devices simultaneously. Enjoy a more efficient network that loads faster without dragging down performance. †
2-in-1 Router and Access Point
Flexible and multifunctional, HX510 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.
Detail Specifications
| HARDWARE FEATURES External Power Supply DC 12 V at 1.5 A Interface 3 Gigabit Ports Per Unit 1 Port supports WAN/LAN auto-sensing Button Reset Button WPS Button |
| WIRELESS FEATURES Frequency 2.4 GHz and 5 GHz Signal Rate AX3000 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps Transmit Power FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz) CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) Wireless Security WPA-PSK/WPA2-PSK/WPA3 Personal encryptions Wireless Standards Wi-Fi 6 IEEE 802.11a/n/ac/ax 5 GHz IEEE 802.11b/g/n/ax 2.4 GHz Multi-SSID 2 5 GHz Multi-SSID 2 2.4 GHz Multi-SSID |
| SOFTWARE FEATURES WAN Type Dynamic IP/Static IP/PPPoE Quality of Service WMM Firewall Security SPI Firewall Management Local Management, TAUC Cloud Management, TR-069 (TR-098/TR-181), TR-111, TR-143 Advanced Features Protocols IPv4 IPv6 Working Modes Router Mode Access Point Mode |
| OTHERS HX510 (1-pack) 1 HX510 Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide |
| Certifications CE, FCC, Wi-Fi CERTIFIED 6TM, Wi-Fi CERTIFIED EasyMeshTM |
| Environment Operating Temperature: 0oC-4oC(32oF -104oF) Storage Temperature: -40oC -60oC (-40oF -140oF) Operating Humidity: 10%-90% non-condensing Storage Humidity: 5%-90% non-condensing |
| Smartphone/Tablet Requirements Android 4.4 or later iOS 9.0 or later |
| Item Dimension (L inchxW inchxH inch) 70x 70 x 70 Weight 5 lbs Warranty Information 3 Years |
