Description
Marketing Information

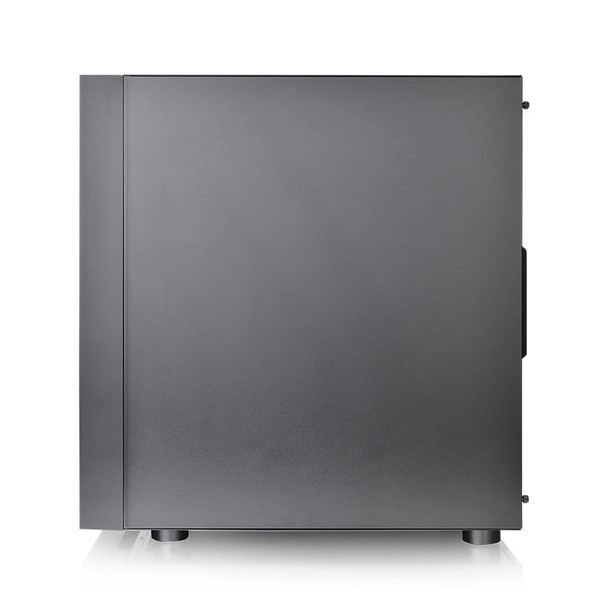

H570 TG ARGB Mid-Tower Chassis
H570 TG ARGB mid-tower chassis is the latest edition of our H series. It can support up to E-ATX (12 x 13) Motherboards, and it comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, which can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be fitted in the chassis and up to 360mm radiator can be placed at the top and the front of the H570 TG ARGB mid-tower chassis.
Mesh Front Panel
H570 TG ARGB mid-tower chassis comes with a large airflow-optimized mesh panel at the front for massive airflow performance.
Three Pre-installed Hydraulic Bearing 120mm ARGB Lite Front Fans
H570 TG ARGB mid-tower chassis comes with three pre-installed hydraulic bearing 120mm ARGB Lite fans at the front of the case. Users may enjoy the fascinating lighting effects by controlling them through the motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Built-in PSU Cover
H570 TG ARGB mid-tower chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
Hinged Tempered Glass Panel
H570 TG ARGB mid-tower chassis comes with one 4mm hinged tempered glass panel on the left side, thicker and more scratch resistant when compared to standard acrylic. On top of that, the enlarged window design enables you to display and admire all your components in their full RGB glory.
H570 TG ARGB mid-tower chassis is the latest edition of our H series. It can support up to E-ATX (12 x 13) Motherboards, and it comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, which can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be fitted in the chassis and up to 360mm radiator can be placed at the top and the front of the H570 TG ARGB mid-tower chassis.
Mesh Front Panel
H570 TG ARGB mid-tower chassis comes with a large airflow-optimized mesh panel at the front for massive airflow performance.
Three Pre-installed Hydraulic Bearing 120mm ARGB Lite Front Fans
H570 TG ARGB mid-tower chassis comes with three pre-installed hydraulic bearing 120mm ARGB Lite fans at the front of the case. Users may enjoy the fascinating lighting effects by controlling them through the motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Built-in PSU Cover
H570 TG ARGB mid-tower chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
Hinged Tempered Glass Panel
H570 TG ARGB mid-tower chassis comes with one 4mm hinged tempered glass panel on the left side, thicker and more scratch resistant when compared to standard acrylic. On top of that, the enlarged window design enables you to display and admire all your components in their full RGB glory.
Detail Specifications
| P/N CA-1T9-00M1WN-01 |
| MODEL H570 TG ARGB |
| CASE TYPE Mid Tower |
| SIDE PANEL 4mm Tempered Glass x 1 |
| COLOR Black |
| MATERIAL SPCC |
| COOLING SYSTEM Front(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3 |
| DRIVE BAYS 2 x 3.5, 2 x 2.5 or 4 x 2.5 |
| EXPANSION SLOTS 7 |
| MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13(E-ATX) |
| I/O PORT USB 3.0 x 2, HD Audio x 1 |
| PSU Standard PS2 PSU (optional) |
| FAN SUPPORT Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
| RADIATOR SUPPORT Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| CLEARANCE CPU cooler height limitation: 160mm VGA length limitation: 375mm PSU length limitation: 180mm |
| Item Dimension (L"xW"xH") 22 x 12 x 22 Weight 42 lbs Warranty Information 3 years |
