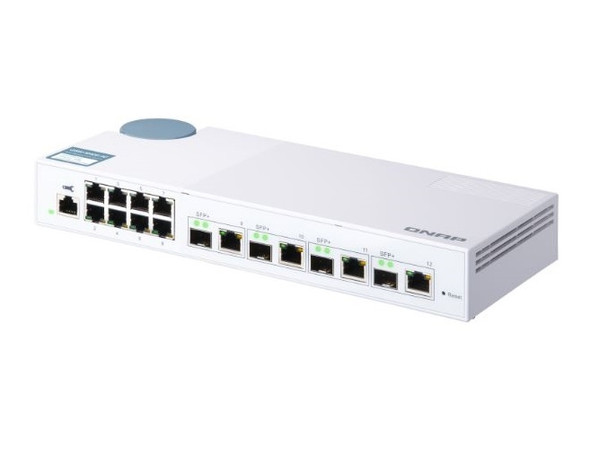

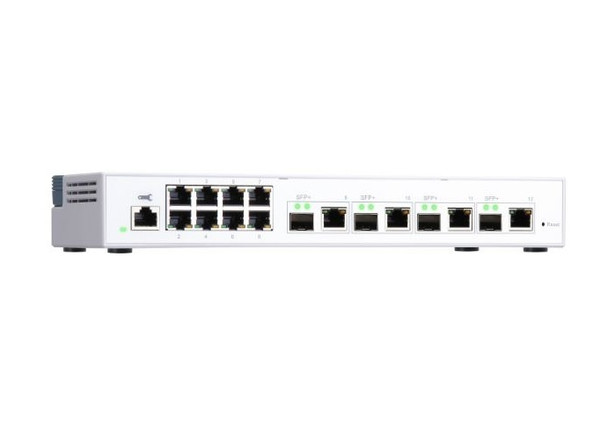

QSW-M408-4C
Entry-level 10GbE Layer 2 Web Managed Switch for SMB Network Deployment
The QSW-M408-4C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M408-4C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. The QSW-M408-4C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-4C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security.
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M408-4C provides four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-4C is 96Gbps, guaranteeing the full potential of each port.
QSS: Intuitive Network Management Software with Web GUI
The QSW-M408-4C uses the QNAP Switch System (QSS), which features an easy-to-use Web GUI with value-added functions to simplify network set up and management.
Entry-level 10GbE Layer 2 Web Managed Switch for SMB Network Deployment
The QSW-M408-4C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M408-4C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. The QSW-M408-4C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-4C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security.
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M408-4C provides four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-4C is 96Gbps, guaranteeing the full potential of each port.
QSS: Intuitive Network Management Software with Web GUI
The QSW-M408-4C uses the QNAP Switch System (QSS), which features an easy-to-use Web GUI with value-added functions to simplify network set up and management.
Detail Specifications
| Management Type Web Managed |
| Number of Ports 12 |
| 10GbE SFP+/RJ45 Combo Ports 4 Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M). |
| 1GbE (RJ45) 8 |
| Power Supply Description Adapter |
| Max. Power Consumption 31.46 W |
| Input Power Type AC |
| Input Voltage Range 100-240VAC, 50/60 Hz |
| MAC Address Table 16K |
| Total Non-Blocking Throughput 48Gbps |
| Switching Capacity 96Gbps |
| Management Interface Web |
| Console RJ45 |
| Energy Efficient Ethernet (IEEE 802.3az complaint) Yes |
| Fan PWM double ball bearing fan x 1 |
| Supported Standards IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Form Factor Desktop |
| LED Indicators Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons Reset button |
| Operating Temperature 0oC to 45oC (32oF to 113oF) |
| Relative Humidity 5-95% Non-condensing |
| Certifications CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance CLASS A |
| Jumbo Frames 9K |
| Item Dimension (L"x W"x H") 3 x 12 x 6 Weight 4.00 LB Warranty Information 2 years |
