QNAP NAS TL-D800S-US 8B desktop SATA JBOD expansionunit w QXP-800eS-A1164 PCIe

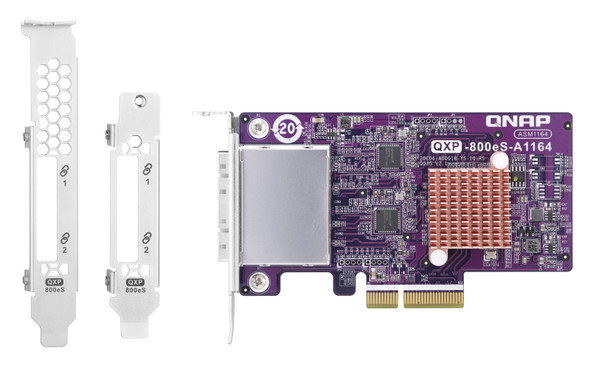

TL-D800S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D800S features eight 3.5-inch SATA 6Gb/s drive bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.


Lockable hard drive trays prevent accidental drive removal.

SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.

Easy to use. QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information.


High-performing TL SATA JBOD

The TL SATA JBOD supports multi-lane SATA 6Gb/s transfer, and each SATA lane directly connects to a single SATA drive to help improve performance. With the 1-1 high-speed channel, the TL SATA JBOD delivers excellent transfer performance.

Note: The SFF ports and drive slots order: SFF port 1 to HDD slot 1-4, SFF port 2 to HDD slot 5-8, SFF port 3 to HDD slot 9-12, SFF port 4 to SDD slot 1-4 (TL-D1600S)


Flexible Storage Configuration and Management

The TL-D800S provides software-controlled storage configuration for greater management flexibility. You can configure RAID and monitor JBOD enclosure and disk health with Storage & Snapshots when connected to a QTS or QuTS hero NAS, or with the QNAP JBOD Manager utility when connected to a computer.


Use the Storage & Snapshots Manager in QTS or QuTS hero to configure the TL-D800S as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D800S, you can easily expand storage capacity.

Drive Bay
8 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Audio Alert On/Off Switch
Yes

Form Factor
Tower

Host Interface
2 x SFF-8088

LED Indicators
HDD 1-8, Status, Link, Fan error

LCD Display/ Button
Yes

Buttons
Power switch, enter, select

Max. number of HDDs/SSDs supported
8

Hard Drive Type
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Operating temperature
0 - 40 ^oC (32^oF - 104^oF)

Storage Temperature
-20 - 70^oC (-4^oF - 158^oF)

Relative Humidity
5-95% RH non-condensing, wet bulb: 27^oC (80.6^oF)

Power Supply Unit
250W PSU, 100 - 240V

Power Consumption: Operating Mode, Typical
51.606 W
Tested fully polulated with Seagate ST6000NM0024 hard drives.

Fan Mode Switch
Yes (Auto, high, medium, low)

Fan
2 x 120mm, 12VDC

Sound Level
21.3 db(A)

System Warning
Buzzer

Kensington Security Slot
Yes
