Description

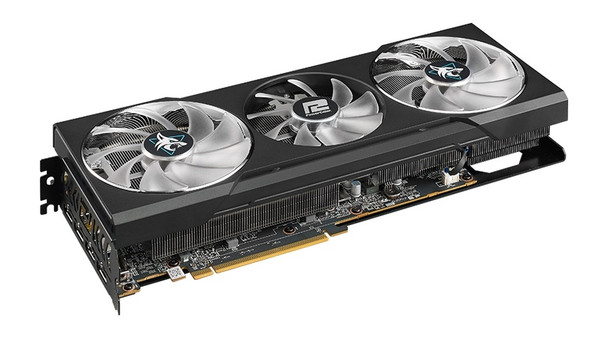

PowerColor is proud to introduce a brand-new series, Hellhound. PowerColor Hellhound RX 6700 XT is armored a transparent triple cooling-fan. The cooler design utilizes nickel plated copper base direct touch technology to enhance the heat dissipation, and to strengthen the airflow efficiency for making sure the card is able to achieve the better performance. PowerColor Hellhound RX 6700 XT equips mysterious LED light on the shroud and back plate to make your system more stylish and chiller.
The Power of Hellhound
To achieve better thermal solution, PowerColor Hellhound RX 6700 XT is armed with a triple fan design (100mm x 90mm x 100mm), a cooler with 5X6Φ nickel plated heatpipes, and a smooth nickel plated copper base to enhance heat dissipation. Moreover, it is also equipped with an 8+2 phase VRM with DrMOS, high quality polymer capacitors, and two 8-pin PCI-E connectors for better performance.
1. Back Plate
The metal back plate strengthens the card and offers better heat dissipation.
2. LED Switch
Want to keep a low profile for a while? Just flip the switch; the fan LED will be off.
3. Stronger MOS, Better Protection
DrMOS provides superior power efficiency and offers better thermal protection. Hellhound is armed with stronger components: an 8+2 phases VRM guarantees better overclocking and stability.
4. Cooler
5X6Φ heatpipes efficiently dissipate the heat and make your card cool.
5. Triple Fan
The 2X 100mm and 1X 90mm optimized static pressure fan design provides more air flow and longer circulation.
6. Stunning Hellhound Brighten in the Dark
Hellhound features the Blue LED lighting on the shroud and backplate that provides a cold color when lighten up in your case.
Graphics Engine
AXRX 6700 XT 12GBD6-3DHL
Video Memory
12GB GDDR6
Stream Processor
2560 Units
Engine Clock(OC)
up to 2424MHz(Game)
up to 2581MHz(Boost)
Memory Clock
16.0 Gbps
Memory Interface
192-bit
DirectX Support
12
Bus Standard
PCIE 4.0
Standard Display Connectors

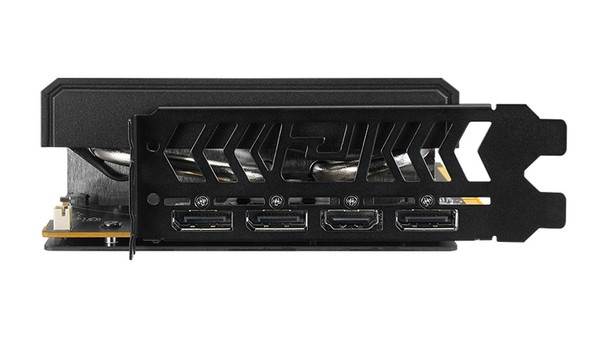

1 x HDMI 2.1 , 3 x DisplayPort 1.4
Product Remark
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
Feature Support
OpenGL
Support
CrossFireXTM Technology
support (DirectX 12/VulkanTM)
AMD Stream Technology
Support
AMD Eyefinity Technology
Support
Maximum Resolution
DisplayPort
7680x4320
HDMI
7680x4320
Power Specs
Minimum System Power requirement (W)
650W
Extension Power Connector
Two 8-pin PCI Express Power connectors
Item Dimension (L inchxW inchxH inch)
16 x 9 x 5
Weight
6.00 lb
Warranty Information
2 year limited
