Description
Marketing Information

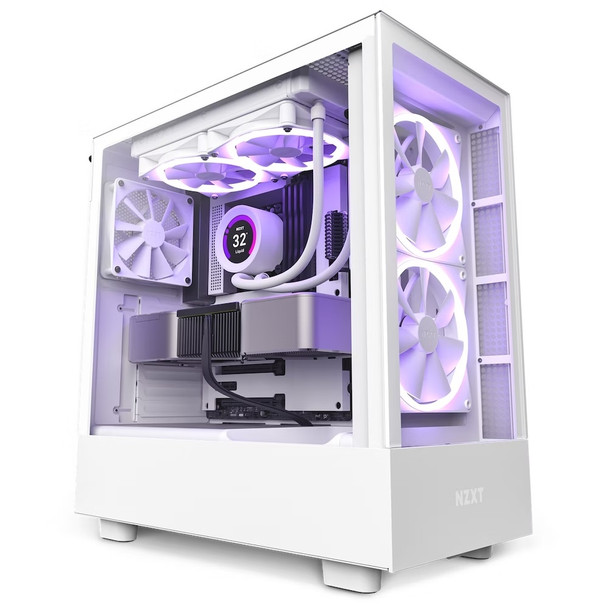

The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.

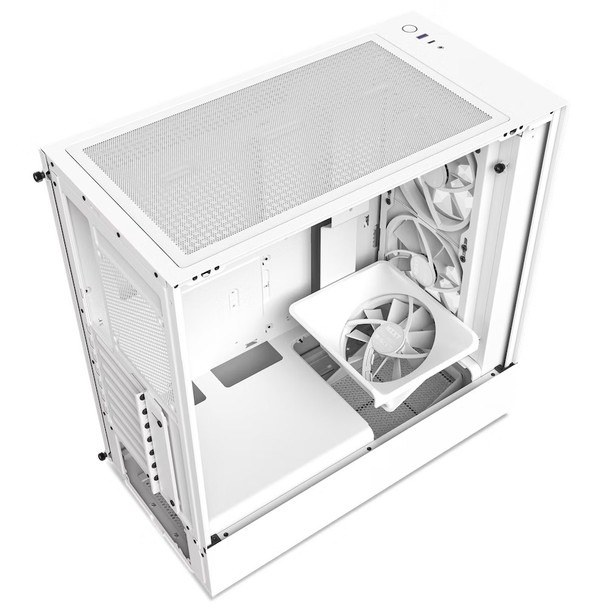

• Pre-installed fan on bottom inside panel is angled to cool GPU

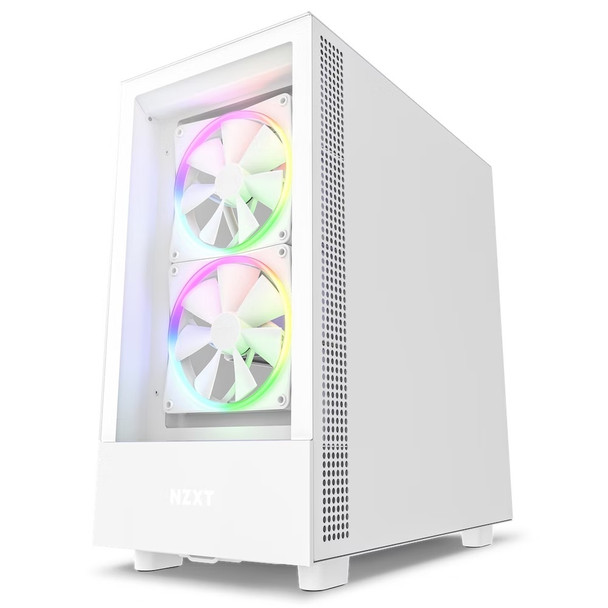

• Tempered glass front panel and built-in RGB controller
• Perforated top panel provides optimal ventilation
• Intuitive cable management system with wide channels, hooks, & straps

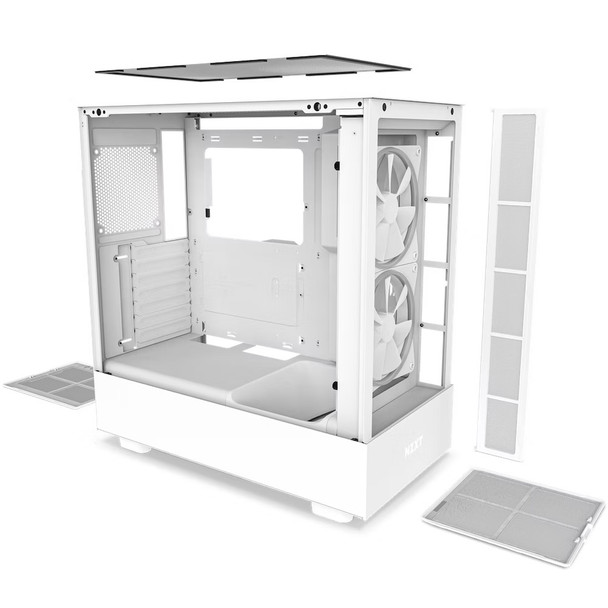

• Tool-less access to front & side panels
• Front panel supports 2 x 140mm fans or 280mm radiator
• Top panel supports up to 2 x 120mm fans or 240mm radiator
• Includes two pre-installed F140 RGB fans & one F120Q fan
Inside the Box
H5 Elite Case x1
Front I/O split cables x1
Brown box, PE bag, polyform, manual, accessory box & parts (including the screws) x1
Fan Capacity
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
1. Top: 2x 120mm
2. Front: 2x 140mm / 2x 120mm
3. Rear: 1x 120mm
4. Bottom: 1x 120mm
Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
• Pre-installed fan on bottom inside panel is angled to cool GPU
• Tempered glass front panel and built-in RGB controller
• Perforated top panel provides optimal ventilation
• Intuitive cable management system with wide channels, hooks, & straps
• Tool-less access to front & side panels
• Front panel supports 2 x 140mm fans or 280mm radiator
• Top panel supports up to 2 x 120mm fans or 240mm radiator
• Includes two pre-installed F140 RGB fans & one F120Q fan
Inside the Box
H5 Elite Case x1
Front I/O split cables x1
Brown box, PE bag, polyform, manual, accessory box & parts (including the screws) x1
Fan Capacity
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
1. Top: 2x 120mm
2. Front: 2x 140mm / 2x 120mm
3. Rear: 1x 120mm
4. Bottom: 1x 120mm
Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
Detail Specifications
| Motherboard Support: Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
| Enclosure Type: Mid-Tower |
| Case Material: SGCC Steel, Tempered Glass |
| COMPATIBILITY and CLEARANCE Max CPU Cooler Clearance: Up to 165mm |
| Max GPU Clearance: Up to 365mm |
| Front Radiator Clearance: 45mm |
| Cable Management: Up to 23mm |
| FRONT I/O PORTS USB 3.2 Gen 1 Type-A: 1 |
| USB 3.2 Gen 2 Type-C: 1 |
| Headset Audio Jack: 1 |
| INCLUDED ACCESSORIES Installation screws: 1 |
| Cable ties: 10 |
| RGB Lighting Controller:NZXT RGB Connector: 3 (Support up to 120 LEDs) |
| EXPANSION SLOTS Standard: 7 |
| DRIVE BAYS 2.5": 1+1 |
| 3.5": 1 |
| FAN SUPPORT Front: 2 x F Series RGB 140mm (Case Version) included |
| Top: 2 x 120mm |
| Rear: 1 x 120mm |
| Bottom: 1 x F Series Quiet 120mm (Case Version) included |
| Filters: All Air Intakes |
| RADIATOR SUPPORT Front: Up to 280mm |
| Top: Up to 240mm |
| Rear: Up to 120mm |
| FAN SPECS Model: F140 RGB Fan |
| Speed: 500 - 1800 RPM |
| Airflow: 24.85 - 89.48 CFM |
| Static Pressure: 0.94 - 3.39 mm-H2O |
| Noise: 20 - 32.5 dBA |
| Fan Connector: 4-pin |
| FAN SPECS Model: F120Q Airflow Fan (Case Version) |
| Speed: 1200 +/- 240 RPM |
| Airflow: 62.18 CFM |
| Static Pressure: 1.05 mm-H2O |
| Noise: 25.1 dBA |
| Fan Connector: 3-pin |
| Item Dimension (L inchxW inchxH inch) 21 x 12 x 20 Weight 37.00 lb Warranty Information 2 Years |
