Description
Marketing Information
• Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Detail Specifications
| CHIPSET INTEL B760 |
| CPU Supports 12th/13th Gen Intel CoreTM Processors, Pentium Gold and Celeron Processors LGA 1700 |
| MEMORY 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: - 1DPC 1R Max speed up to 6800+ MHz - 1DPC 2R Max speed up to 6400+ MHz - 2DPC 1R Max speed up to 6000+ MHz - 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| ONBOARD GRAPHICS 1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60HzNote Support DP 1.4, maximum resolution of 4K 60HzNote Note: Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT 5x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| STORAGE 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) Note: SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN Realtek RTL8125BG 2.5G LAN |
| WIRELESS LAN and BLUETOOTH Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHzNote (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA Note: Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| LED FEATURE 4x EZ Debug LED |

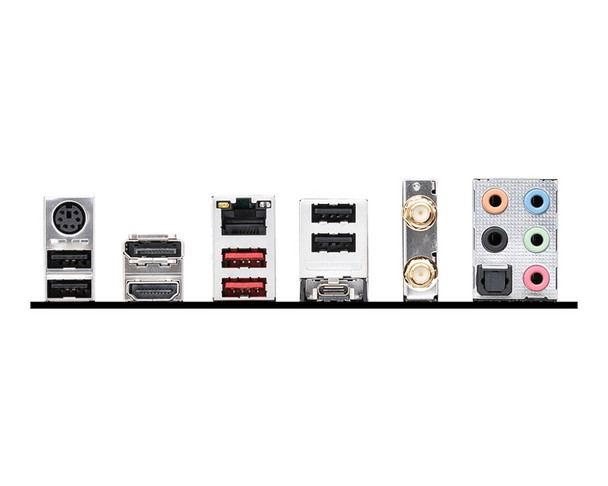

| BACK PANEL PORTS Keyboard / Mouse DisplayPort 2.5G LAN USB 2.0 Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMITM USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT |
| OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB INFO ATX 243.84mmx304.8mm |
| Item Dimension (L inchxW inchxH inch) 14 x 11 x 3 Weight 5.00 lb Warranty Information 3 Years |

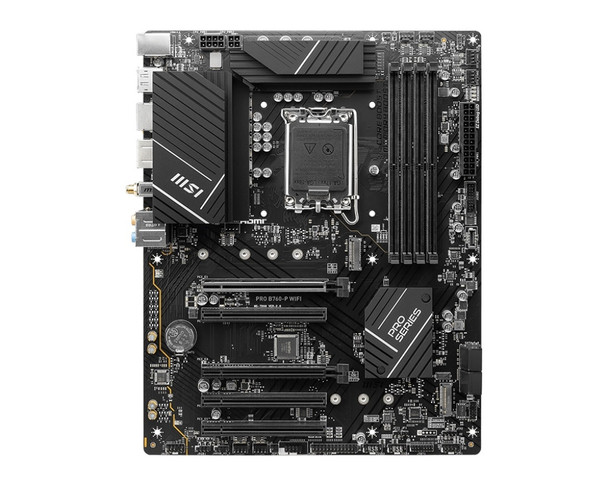

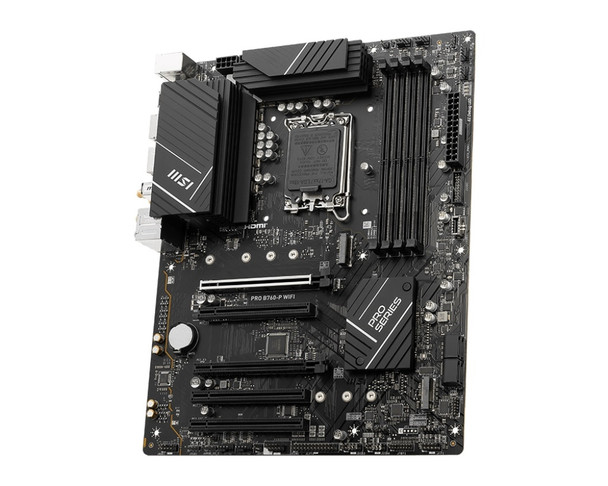

MSI PRO B760-P WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX
Pentium Gold, Core, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
PRO B760-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
Package Contents:
- PRO B760-P WIFI Gaming Desktop Motherboard
- European Union Regulatory Notice
- quick Installation guide
- 2 x M.2 screw/Standoff Sets
- Sata Cable
- wi-fi Antenna
- I/O Shield
Additional-pdf1 Manufacturer:
MSI
Manufacturer Part Number:
PROB760PWIFI
Manufacturer Website Address:
http://www.msi.com
Brand Name:
MSI
Product Series:
PRO
Product Model:
PRO B760-P WIFI
Product Name:
PRO B760-P WIFI Gaming Desktop Motherboard
Marketing Information:
PRO B760-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
Product Type:
Gaming Desktop Motherboard
Chipset Manufacturer:
Intel
Chipset Model:
B760
Total Processor Supported:
1
Processor Socket:
Socket LGA-1700
Processor Generation Supported:
- 12th Gen
- 13th Gen
Processor Supported:
- Pentium Gold
- Core
- Celeron
Number of Memory Slots:
4
Memory Form Factor:
- DIMM
- UDIMM
Maximum Memory Supported:
192 GB
Memory Technology:
DDR5 SDRAM
Memory Speed Supported:
- 6800 MHz
- 6600 MHz
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
Controller Type:
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
- 10
- 1
- 5
- 0
Onboard Video:
CPU Dependent Video
Audio Channels:
7.1
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.3
Gigabit Ethernet:
Yes
2.5Gigabit Ethernet:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11 a/b/g/n/ac/ax
Number of Total Expansion Slots:
5
PCI Express Standard:
- PCI Express 4.0
- PCI Express 3.0
Total Number of PCI Express Slots:
5
Number of PCI Express x16 Slots:
5
Total Number of USB Ports:
7
Number of USB 2.0 Ports:
4
Number of USB 3.2 Gen 2 Type-A Ports:
2
Number of USB 3.2 Gen 2 Type-C Ports:
1
S/PDIF:
Yes
HDMI:
Yes
HDMI Version:
2.1
DisplayPort:
Yes
Number of Network (RJ-45) Ports:
1
Number of SATA Interfaces:
4
Number of M.2 Interfaces:
2
Total Number of Onboard USB Ports:
7
Number of Onboard USB 2.0 Ports:
4
Form Factor:
ATX
Width:
12"
Depth:
9.6"
Package Contents:
- PRO B760-P WIFI Gaming Desktop Motherboard
- European Union Regulatory Notice
- quick Installation guide
- 2 x M.2 screw/Standoff Sets
- Sata Cable
- wi-fi Antenna
- I/O Shield
Brand Compatibility:
Intel
Country of Origin:
China
