Description
Lian Li SL120 Uni Fan 120mm, 3 Pack, With controller, Black
Need it in White? Click here.
A modular approach to fan design to enhance the user experience and to create a cable-free, hassle-free, and easier assembly process.
UNPRECEDENTED MODULARITY
- Slide-in/ interlocking mechanism
- PIN-to-PIN contact point for receiving power and signal
- Reduced need for mounting screws
DESIGNATED CABLE MODULES FOR UNI FAN SL120
Each UNI FAN features a cable module with a PIN-to-PIN contact point to receive power and signal.Each cable module can support up to 4 UNI FAN SL120s, allowing users to choose to use either a single fan or up to 4 fans in one go.
Note!When using the UNI FAN SL120 in a custom watercooling configuration, make sure that the fittings on the radiators do not interfere with the contact point on the side of the fans.
SOPHISTICATED RGB LIGHTING
The 32 addressable RGB LEDs embedded in each fan (16 LEDs on either side of the frame) ensure vibrant lighting effects.
VIBRANT RGB LIGHTING VISIBLE FROM ALL ANGLES
The 16 LEDs on each side shine through a diffuser, ensuring a smooth light is visible from all angles.
L-CONNECT SOFTWARE FOR A MORE INTUITIVE FAN CONTROL
With the toggle of a switch, changing control between motherboard software and the L-Connect is a breeze.Download L-Connect
NOTE!The 4 possible clusters of UNI FANs that can be connected to the controller are reflected on the L-Connect interface. VIA L-Connect, users can adjust a single UNI FAN SL120, a single cluster of up to 4 fans, or all 4 clusters of fans according to their needs.
PREMIUM LOOK, EXQUISITE DETAILING
Aluminium logo badge CD texture for an enhanced quality feel with Machine-detailed aluminium frame
MORE DURABLE, EXTREMELY SILENT
A close look at what makes SL120 operate efficiently.

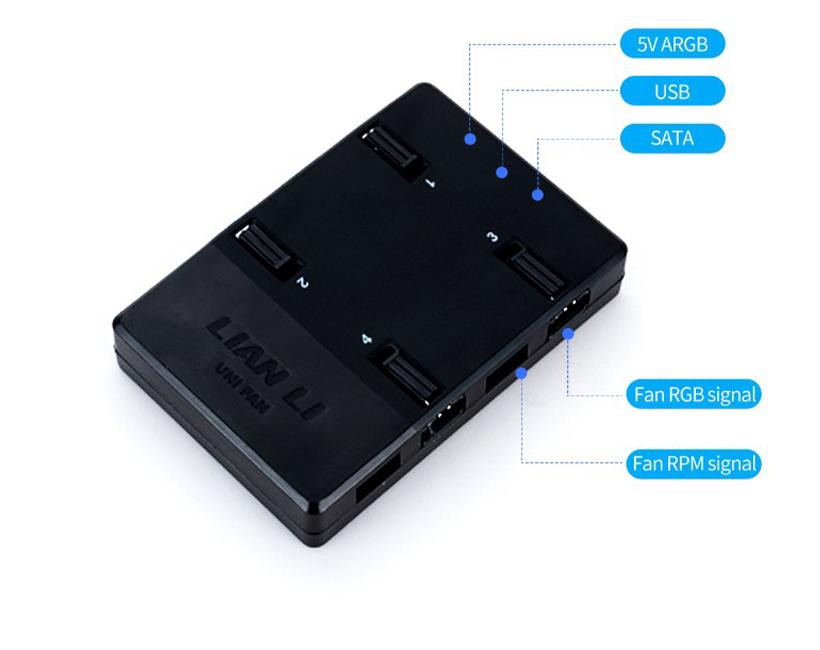

A DESIGNATED UNI FAN CONTROLLER TO EASILY MANAGE 16 FANS IN ONE GO
Features
- Daisy-chain design an enjoyable experience
- L-Connect intuitive control interface
- Multiples effect/ability to sync 32 leds per fan
- High static pressure quiet operation
- Premium quality sandblasted aluminum parts
- Unprecedented flexibility a quicker and easier installation process
- Machine-detailed aluminium frame
- Aluminium logo badge CD texture for an enhanced quality feel
- A Designated uni fan controller to easily manage 16 fans
Specifications
| Make and Model | Lian Li UNI FAN SL120 3 Pack with Fan Controller |
|---|---|
| Part Number | UF-SL120-3B w/ cont. |
| Color | Black |
| Rated Voltage | DC 12V(FAN) & 5V(LED) |
| Fan Speed | 800~1900RPM |
| Max. Air Pressure | 2.54mmH2O |
| Max. Air Flow | 58.54CFM |
| Acoustical Noise (Min-Max.) | 17dB ~ 31dB |
| Locked Current | >= 0.5mA |
| Bearing Type | Fluid Dynamic Bearing(FDB) |
| Operation Voltage | DC 12V & 5V |
| Start-up Voltage | DC 6.0V |
| Input Current | 0.18A(FAN) / 0.6A (LED) |
| Input Power | 3.5Watt |
| Dimensions | 122.8 X 122.4 X 25 mm |
| Weight | Approx 20 ounces |
Package Contents
- Lian Li Fan 3 Pack
- Fan Controller
- Users Manual
