Description
Marketing Information

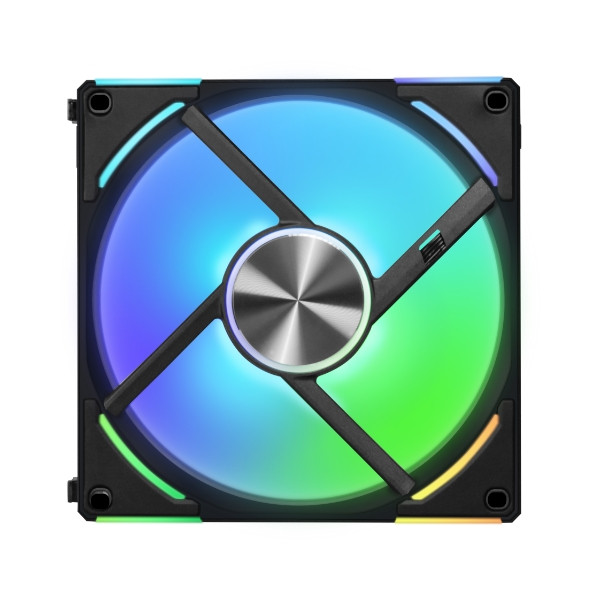

UNI FAN AL V2
• Improved daisy chain design to connect 2 clusters of fans.
• AL120 V2 fan frame thickness is 28mm to provide 20% improved airflow compared to V1.
• Removable interlocking keys to provide better radiator clearance.
• Start/stop fan RPM support for a quieter environment.
• New corner lighting visible from all sides
• Only one cable is required for each fan cluster when using the provided new UNI HUB to control lighting effects via L-Connect 3.
AVAILABLE IN TWO SIZES AND TWO COLORS
AL120 V2
White / Black
AL140 V2
White / Black
UPGRADED MODULARITY
UNI FAN AL V2 features an interlocking system to connect up to 6 fans in two clusters to a single controller port, making fans installation and cable management a simple job.
THICKER YET EASY TO INSTALL
The UNI FAN AL120 V2 has been amended to a slightly thicker frame of 28mm, and implements indented screw holes to fit standard 25mm long screws for installation.
ULTIMATE PERFORMANCE ARGB FAN
Running at peak performance while keeping low noise levels, the UNI FAN AL120 V2 is the best-performing ARGB fan within the entire UNI FAN lineup.
• Improved daisy chain design to connect 2 clusters of fans.
• AL120 V2 fan frame thickness is 28mm to provide 20% improved airflow compared to V1.
• Removable interlocking keys to provide better radiator clearance.
• Start/stop fan RPM support for a quieter environment.
• New corner lighting visible from all sides
• Only one cable is required for each fan cluster when using the provided new UNI HUB to control lighting effects via L-Connect 3.
AVAILABLE IN TWO SIZES AND TWO COLORS
AL120 V2
White / Black
AL140 V2
White / Black
UPGRADED MODULARITY
UNI FAN AL V2 features an interlocking system to connect up to 6 fans in two clusters to a single controller port, making fans installation and cable management a simple job.
THICKER YET EASY TO INSTALL
The UNI FAN AL120 V2 has been amended to a slightly thicker frame of 28mm, and implements indented screw holes to fit standard 25mm long screws for installation.
ULTIMATE PERFORMANCE ARGB FAN
Running at peak performance while keeping low noise levels, the UNI FAN AL120 V2 is the best-performing ARGB fan within the entire UNI FAN lineup.
Detail Specifications
| PRODUCT NAME UNI FAN AL120 V2 |
| MODEL AL120V2-1B |
| COLOR Black |
| NUMBER OF FANS 1 |
| CONTROLLER No |
| CONNECTOR TYPE 1 x 4-PIN PWM + 3-PIN SM Type 1 x ARGB MB Adaptor |
| FAN DIMENSION 120 X 120 X 28 (mm) |
| FAN SPEED 0, 250-2000 RPM |
| MAX. AIR PRESSURE 2.97 mmH2O (Maximum) |
| MAX. AIRFLOW 77.3 CFM (Maximum) |
| ACOUSTIC NOISE 28.7 dB(A) Max |
| MATERIAL PBT/PC/Aluminum |
| RATED VOLTAGE DC 12V (FAN) and 5V (LED) |
| BEARING TYPE Fluid Dynamic Bearing (FDB) |
| OPERATE VOLTAGE DC12V and 5V |
| START-UP VOLTAGE less than or equal 5V |
| INPUT POWER 7.2W |
| Item Dimension (L"xW"xH") 6 x 2 x 6 Weight 1 lb Warranty Information 2 Years |
