Description
O11 DYNAMIC
SPACE OPTIMIZATION CHASSIS
The O11 DYNAMIC is the combination of modern design and art. Through years of researching, collecting feedback and re-designing; We have successfully craft the best edition of the dual chamber chassis.
- Tinted, bolt-free tempered glass on three sides
- Top panel easily converts between tempered glass and filtered ventilation
- Counter-angled vents designed to trap noise with minimal airflow resistance
- Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity
- Interchangeable top panel easily converts between tempered glass and filtered ventilation
Features

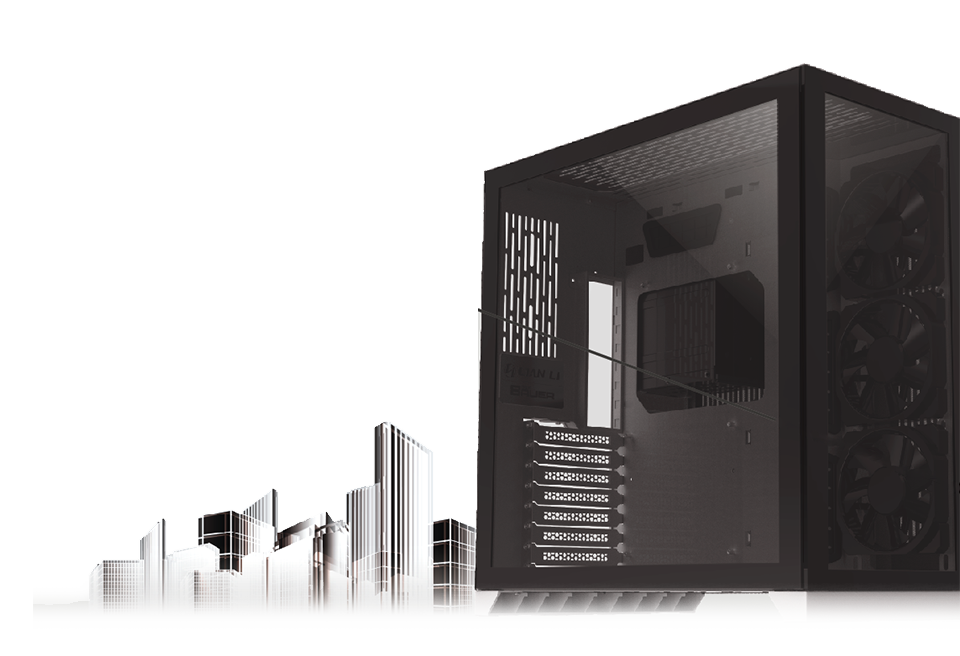

Display Your Hardware Like Modern Architecture
Experience the full view seamless front and side tempered glass like a show room

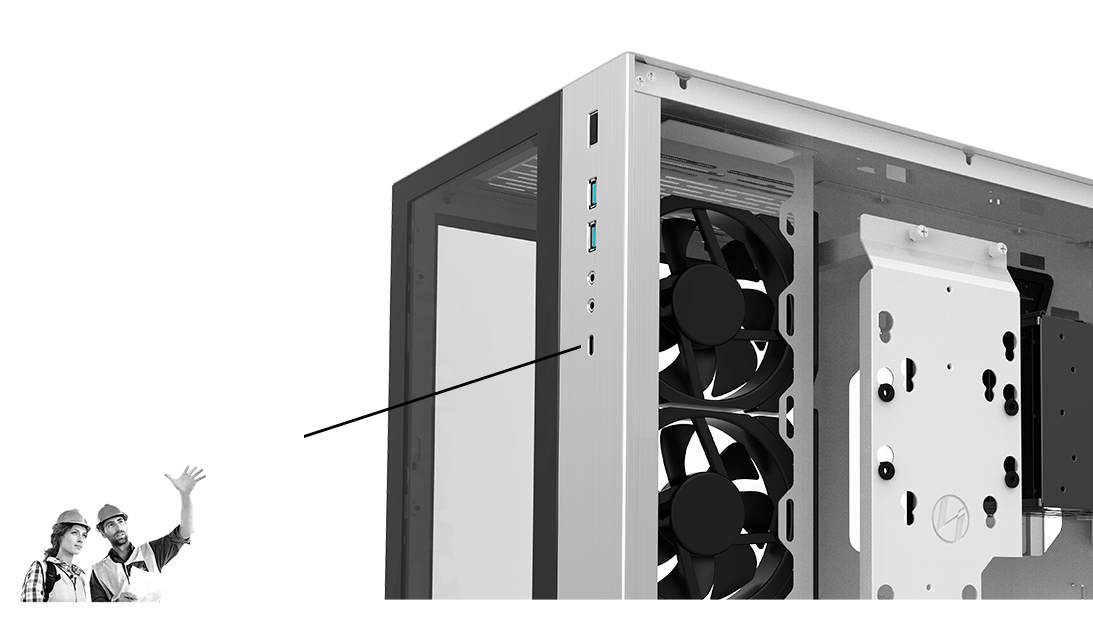

USB 3.1 Type-C, Test the Limit of Transferring Speed
Type-C (USB 3.1) 1280 MB/s

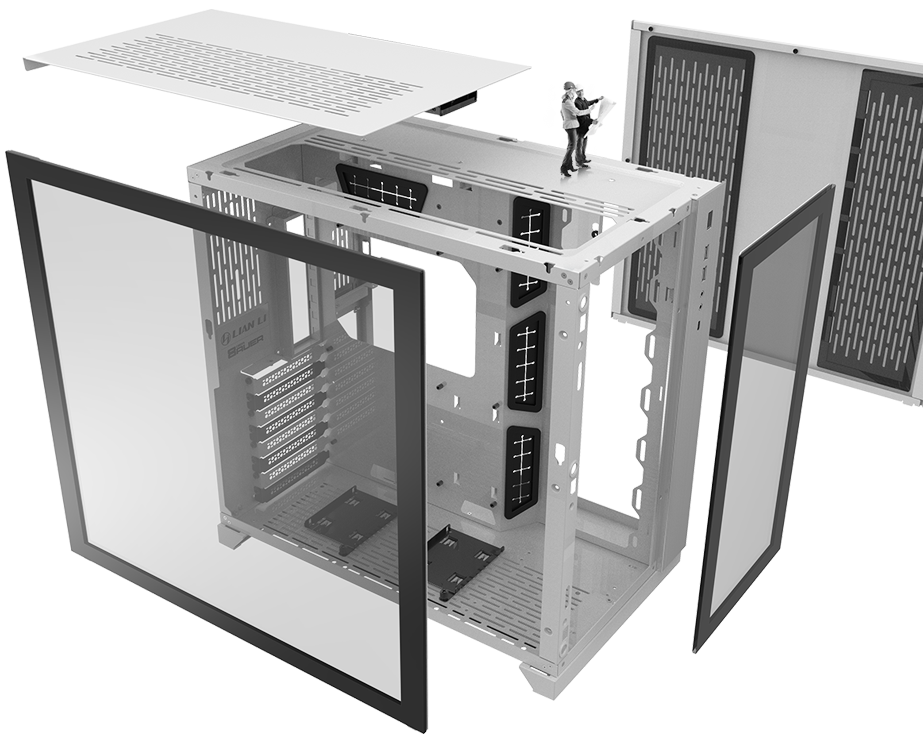

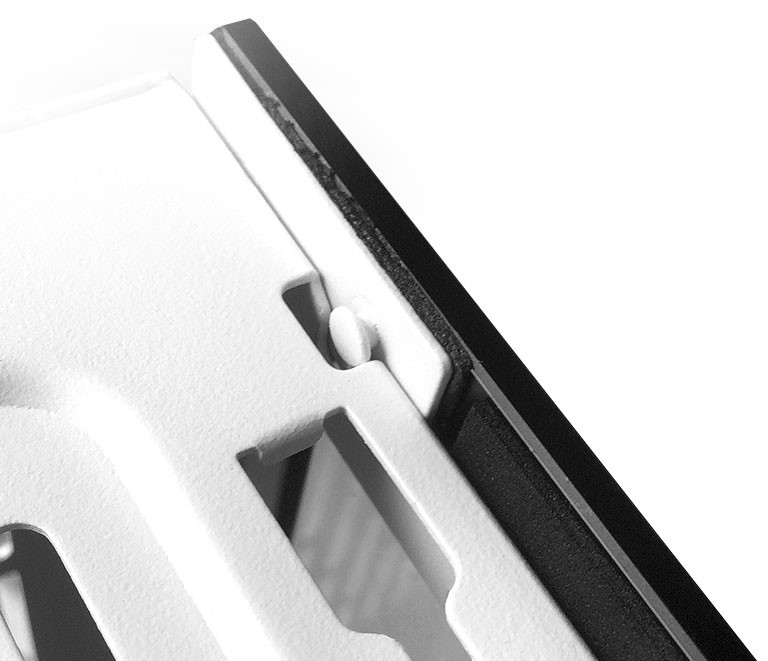

Patented Designed Glass Mounting Mechanism
The two bolt on the steel pieces adhering on the glass secure the panel with ease

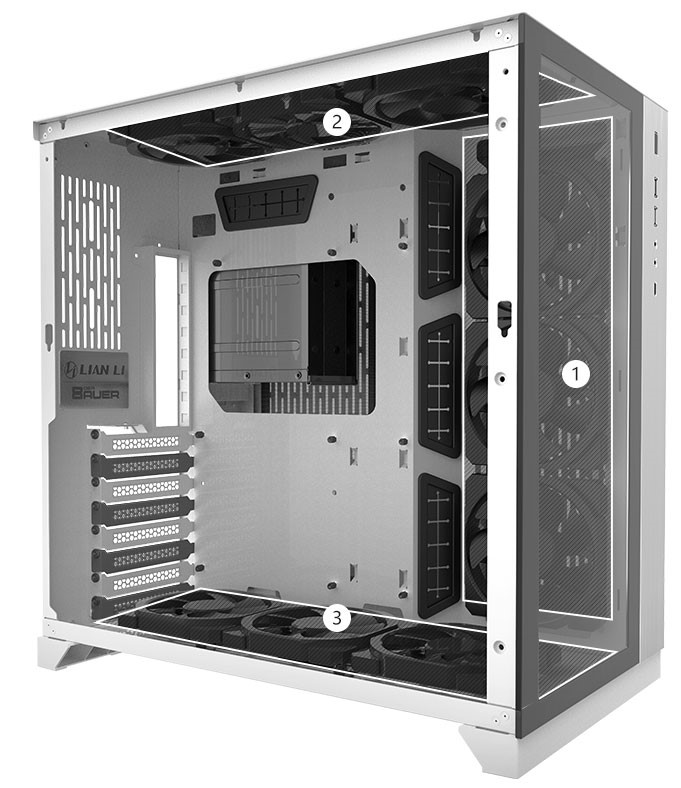

The Potential of Housing Multiple Radiators
Top / bottom / side can be mounted for up to three 360 radiators without interference

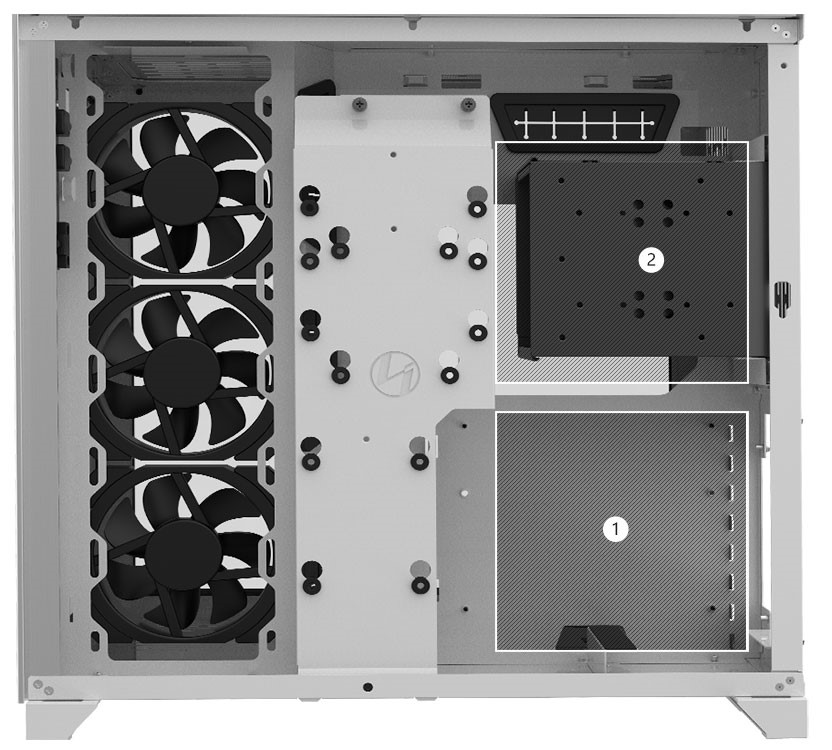

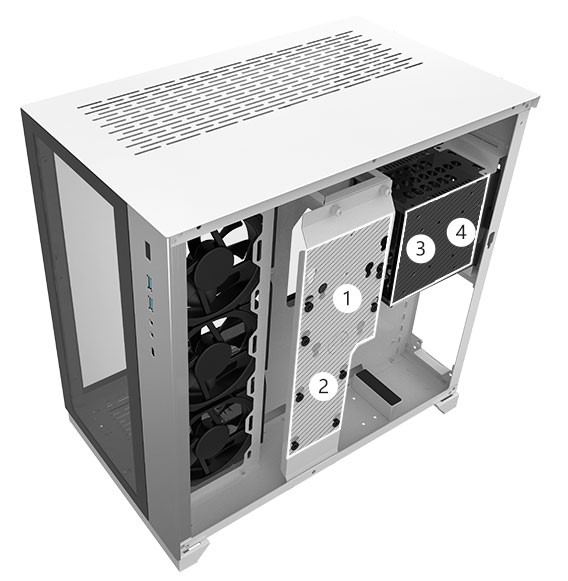

Dual PSUs Capability for Efficiency
The drive caddy can be swapped for second PSUs or can be switched to the lower position

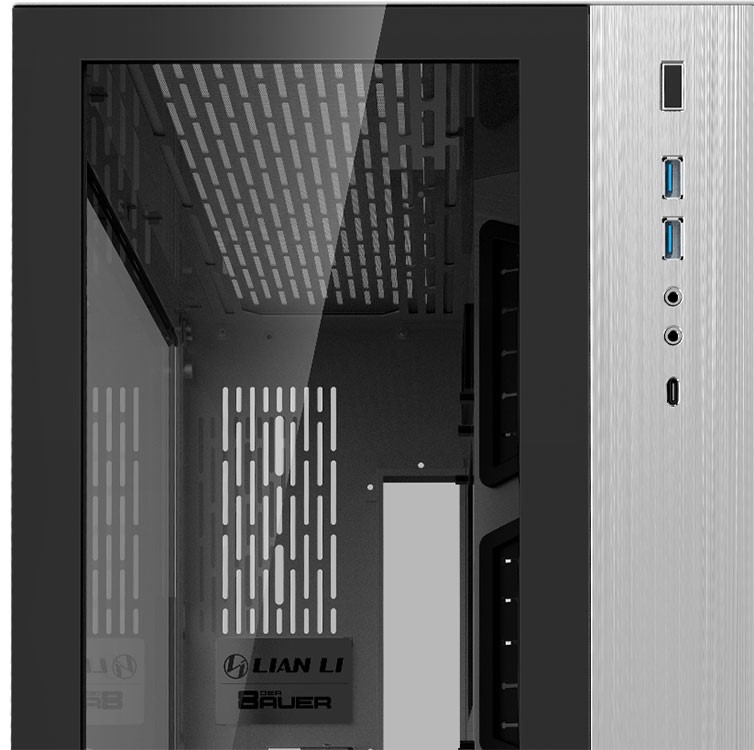

The Combination of the Glass and Aluminum
Wide front glass combines with brush aluminum in proper proportion
Double Layer Cable Management Design
The angled motherboard tray and the back side cable management bar seal the case and exclude any cable mess

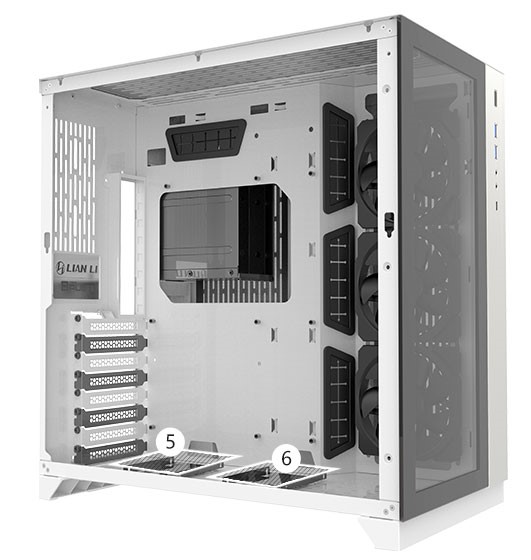

6 Hard Drive Capability
Support up to 6 SSD, and 3 HDD

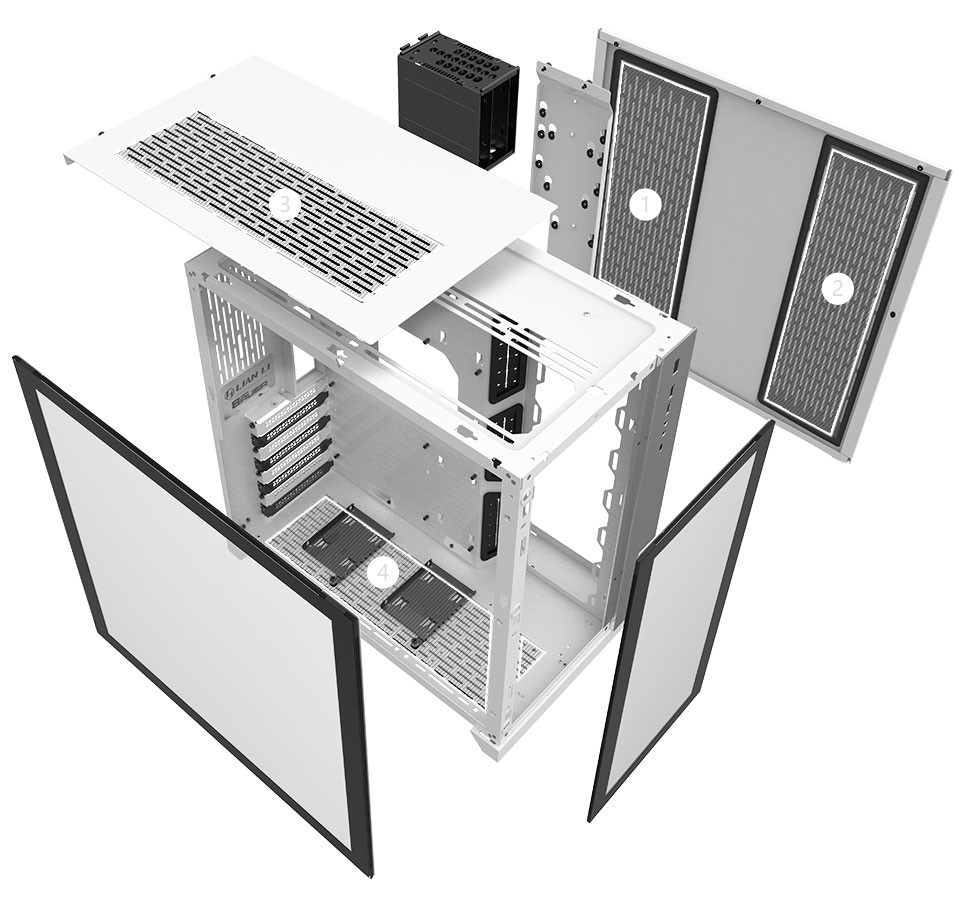

4X Dust Filter, Complete Dust Protection
Bottom / top / side panels are all equipped with magnetic dust filters to prevent any dust infiltration

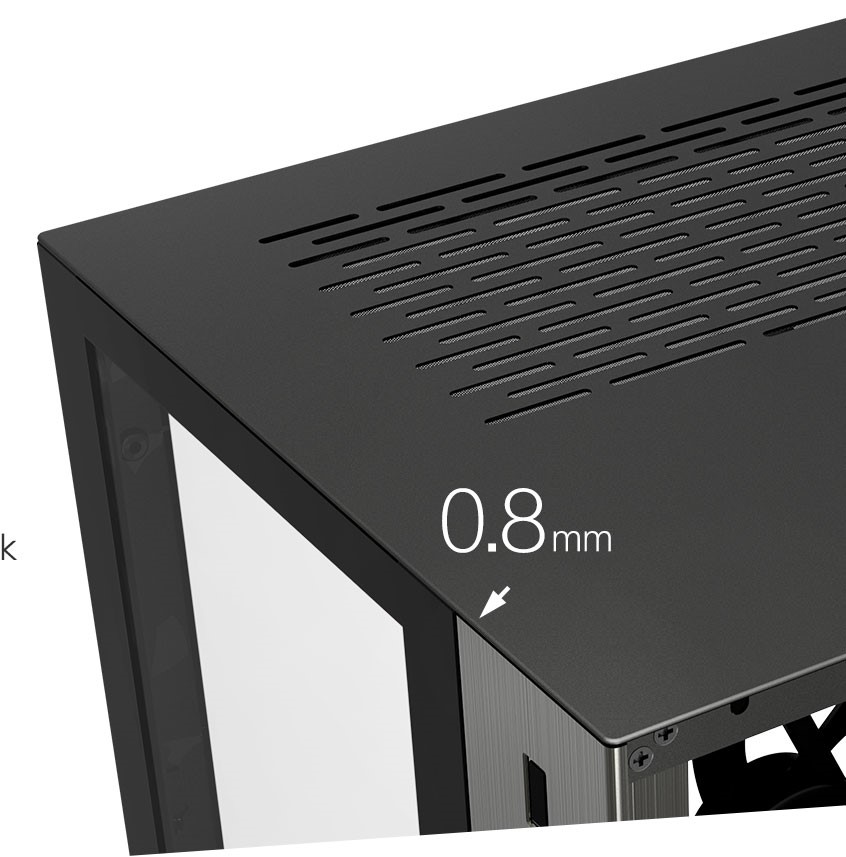

0.8mm SECC, Sturdy Build Construction
The chassis' body structure is made out of 0.8mm thick SECC; Offer sturdy and strong foundation
Detailed Specifications
Model
PC-O11 Dynamic
Case Type
Tower Chassis
Structure
Dual chamber
Color
Black
Material
(Front)Tempered Glass+Aluminum
(Side)Tempered Glass
(Body)0.8mm SECC
Expansion Slot
8
2.5 SSD
4
3.5 HDD
2
I/O Ports
USB3.0 x2 , HD Audio
USB3.1 Type-C x1 , HD Audio
M/B Type
E-ATX / ATX / Micro-ATX
Fan
(Top) 120mm x3 / 140mm x2(Option)
(Side) 120mm x3(Option)
(Bottom) 120mm x3 (Option)
Radiator
120x 360mm / 120x 240mm / 140x 280mm
VGA Card
length is less than or equal to 420mm , height is less than or equal to 159mm
CPU Cooling
is less than or equal to 155mm
PSU
2(L)210mm to 255mm(max)
Filter
(Top) x1(Side) x2, (Bottom) x1
Item Dimension (L inchxW inchxH inch)
20 x 14 x 21
Weight
43.00lb
Warranty Information
1 Year
