Description

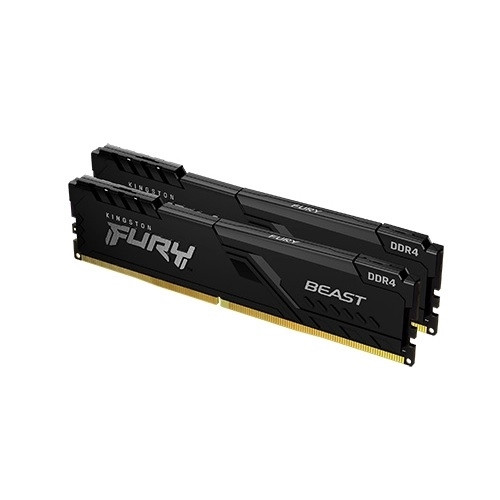

KF426C16BBK2/16
16GB (8GB 1G x 64-Bit x 2 pcs.)
DDR4-2666 CL16 288-Pin DIMM Kit
DESCRIPTION
FURY KF426C16BBK2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2666 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4-2666 at a low latency timing of 16-18-18 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (Plug N Play): DDR4-2666 CL16-18-18 @ 1.2V
• XMP Profile Number 1: DDR4-2666 CL16-18-18 @ 1.2V
View AllClose
16GB (8GB 1G x 64-Bit x 2 pcs.)
DDR4-2666 CL16 288-Pin DIMM Kit
DESCRIPTION
FURY KF426C16BBK2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2666 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4-2666 at a low latency timing of 16-18-18 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (Plug N Play): DDR4-2666 CL16-18-18 @ 1.2V
• XMP Profile Number 1: DDR4-2666 CL16-18-18 @ 1.2V
CL(IDD)
16 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
260ns(min.)
Row Active Time (tRASmin)
29.25ns(min.)
UL Rating
94 V - 0
Operating Temperature
0o C to +85o C
Storage Temperature
-55o C to +100o C
Item Dimension (L"xW"xH")
7 x 3 x 1
Weight
1 lb
Warranty Information
Lifetime Warranty
