Description
USB 3.0 Peripheral Sharing Switch
IOGEAR's 2x4 USB 3.0 Peripheral Sharing Switch provides a convenient means to share four USB devices between two different computers. A simple press of the button changes the connection of four USB devices such as keyboard, mouse, printer, portable hard drives, etc. from one computer to another.
The GUS432 saves costs by allowing a single set of peripherals to be shared by two computers. Perfect for small office / home office users, the IOGEAR USB 3.0 Peripheral Sharing Switch creates a space saving, convenient and productive work environment.
USB 3.0 Compliant
USB 3.0 compliant with a data transfer rate of up to 5Gbps, the 2x4 USB 3.0 Peripheral Sharing Switch works well with high-bandwidth devices such as hard drives, high-resolution webcams, etc. Connect a keyboard and mouse to the GUS432 and use it as a simple USB dock or limited KM switch, to serve as a simple means of controlling two computers with a single control center.
USB 2.0 / USB 1.1 Compatible
The 2x4 USB 3.0 Peripheral Sharing Switch is also compatible with older USB devices.
Features
- Share four USB peripheral devices between two computers
- Easily switch devices from one computer to another with the press of a button
- USB 3.0 compliant, supporting data transfer rates of up to 5Gbps
- LED indicates which computer is active
- Over-current protection
- Supports hot-plugging which allows easily add or remove computers connected to the installation without having to power down the switch
- Optional Micro USB cable can be connected to support additional power (up to 2.5W via USB 2.0 Port, up to 4.5W via USB 3.0 Port)
Requirements
- Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
- Mac OS X 10.3+
- Chrome OS™
- Linux-based systems
- Available USB 3.0 port

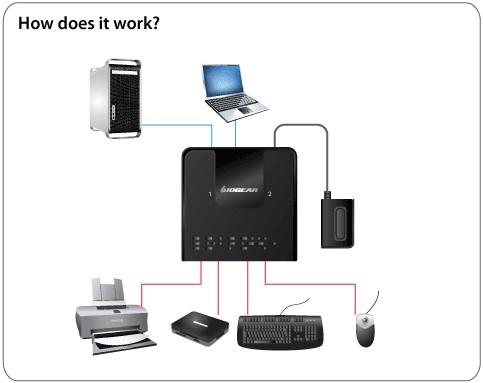

Diagram
Package
- 1 x 2x4 USB 3.0 Peripheral Sharing Switch
- 2 x USB 3.0 Cables
- 1 x Selector Button
- 1 x Quick Start Guide
- 1 x Warranty Card
Specifications
| Function | GUS432 |
|---|---|
| Computer Connections | |
| Direct | 2 |
| Port Selection | Remote control selector button |
| LEDs | |
| Port Status | White |
| Switches | |
| Port Selection | Remote Console Selector Button x 1 |
| Connectors | |
| Computer Side | USB 3.0 Type B x 2 |
| USB | USB 3.0 Type A x 4 |
| Power | USB Type Micro B (optional) |
| Operating Temperature | 32 ~ 104F (0 ~ 40C) |
| Storage Temperature | -4 ~ 140F (-20 ~ 60C) |
| Humidity | 0~80% |
| Housing | |
| Case | Plastic |
| Cable Length | 54" (137.16cm) |
| Cable Type | USB 3.0 Type B to A x 2 |
| Power Consumption | DC 5V, 1.43W |
| Operating System Support | Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.3+, Chrome OS?, Linux-based systems |
| Dimensions | GUS432 |
|---|---|
| POP Information | |
| 10'' Peg Hook | 3 |
| 6'' Peg Hook | 2 |
| Unit Dimensions | |
| Height | 3.75" (9.53cm) |
| Length | 3.75" (9.53cm) |
| Depth | 1.06" (2.69cm) |
| Unit Package Dimensions | |
| Height | 9.25" (23.50cm) |
| Width | 6.5" (16.51cm) |
| Depth | 2.875" (7.30cm) |
| Master Carton | |
| Height | 7.5" (19.05cm) |
| Width | 16" (40.64cm) |
| Depth | 9.375" (23.81cm) |
| Master Carton Qty. | 6 |
| Weight | |
| Master Carton Wt. | 6.45 lb (2.94 kg) |
| Unit Pack Wt. | 0.95 lb (0.42 kg) |
| Unit Wt. | 0.27lb (0.124kg) |
