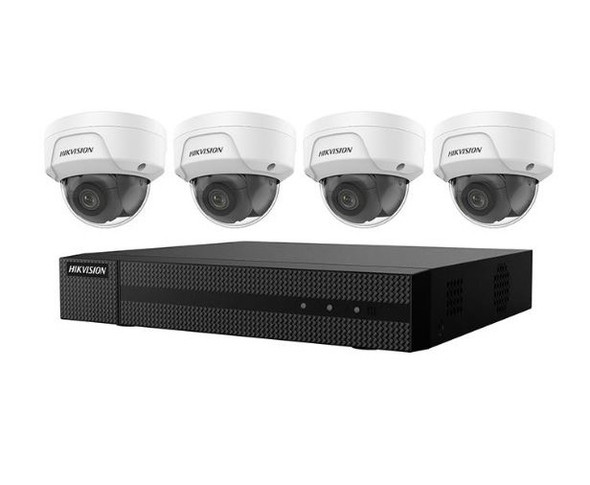

Hikvision NVR EKI-K82D46 8CH 2TB 4MP OutdoorDome Cameras w 2.8mm 4K NVR w PoE

Cameras

• 1/3" (4 MP) Progressive Scan CMOS
• 2688 x 1520 @ 30 fps
• 2.8 mm Fixed Lens
• Color: 0.018 Lux @ ƒ/1.6, AGC on), 0 Lux with IR
• H.265+/H.265/H.264+/H.264
• IP67, IK10
• 120 dB WDR
• BLC/3D DNR/ROI/HLC
• Built-in MicroSD/SDHC/SDXC Card Slot,Up to 128 GB
• 3-Axis Adjustment

4K NVR
• Up to 8 MP Resolution Recording
• H.265+/H.265/H.264+/H.264/MPEG
• Plug-and-Play with 4, 8, or 16 PoE Cameras
• Up to 2 SATA Interfaces

Hikvision EKI-KxxxD4xx Series 4K NVR Value Express Kits are cost-effective solutions for value-oriented users. Each kit is supplied with four, six, or twelve network cameras with 4 MP image sensors, and a 4-, 8-, or 16-channel 4K NVR in the same box.

Kits are plug-n-play and can be set up quickly.

Camera
Number of Cameras
6
Image Sensor
1/3" 4 MP progressive scan CMOS
Minimum Illumination
Color: 0.018 lux at (f/1.6, AGC on), 0 lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Day/Night
IR cut filter
Digital Noise Reduction
3D DNR
WDR
120 dB
3-Axis Adjustment
Pan: 0^o to 355^o , tilt: 0^o to 75^o , rotate: 0^o to 355^o

Lens
Focal length
2.8 mm
Aperture
f/1.6
Focus
Fixed
FOV
2.8 mm, horizontal FOV: 103^o , vertical FOV: 58^o , diagonal FOV: 123^o
Lens Mount
M12

IR
IR Range
Up to 98 ft (30 m)
Wavelength
850 nm

Compression Standard
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type
Main Profile/High Profile
H.264+
Main stream supports
H.265 Type
Main Profile
H.265+
Main stream supports
Video Bit Rate
32 Kbps to 16 Mbps

Alarm Triggers
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, e-mail
Trigger notification: HTTP, ISAPI, e-mail
Region of Interest
1 fixed region for main stream and sub-stream

Maximum Resolution
2688 x 1520
Main Stream
30 fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-Stream
30 fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement
BLC/3D DNR/HLC
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or Web browser
Target Cropping
No
Day/Night Switch
Day/Night/Auto/Schedule

Network
Network Storage
Supports microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Function
Anti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Security
Password protection, complicated password, HTTPS encryption, 802.1x authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 levels: administrator, operator, and User
Client
iVMS-4200, Hik-Connect, HikCentral
Web Browser
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+

Item Dimension (L"x W"x H")
12 x 8 x 20
Weight
14.00 LB
Warranty Information
3 years
