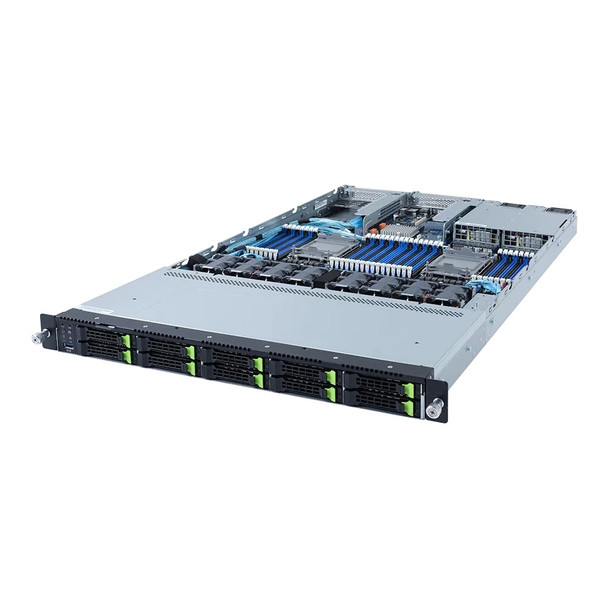

Description
• 3rd Gen. Intel® Xeon® Scalable Processors
• 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
• Supports Intel® Optane™ Persistent Memory 200 series
• Dual ROM Architecture supported
• Intel® C621A Express Chipset
• 2 x 1Gb/s LAN ports (Intel® I350-AM2)
• 1 x Dedicated management port
• 10 x 2.5" SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays
• 2 x 7-pin SATA DOM supported
• 2 x PCIe Gen4 x16 expansion slots
• 1 x OCP 3.0 Gen4 x16 mezzanine slot
• 1 x OCP 2.0 Gen3 x8 mezzanine slot
• 1300W (240V) 80 PLUS Platinum redundant power supply
Where Compute Reigns
3rd Gen Intel® Xeon® Scalable Processors – “Ice Lake”
GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.
Dimensions
1U
Motherboard
MR92-FS1
CPU
3rd Generation Intel Xeon Scalable Processors
Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
10nm technology, CPU TDP up to 270W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4189
Socket P+
Chipset
Intel C621A Express Chipset
Memory
32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN
2 x 1Gb/s LAN ports (Intel I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 at 60Hz 32bpp, DDR4 SDRAM
Audio
N/A
Storage
10 x 2.5" SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
SAS
N/A
RAID
N/A
Peripheral Drives
N/A
Expansion Slots
Riser Card CRS101E:
- 1 x PCIe x16 slot (Gen4 x16), Full-height half-length
Riser Card CRS101G:
- 1 x PCIe x16 slot (Gen4 x16), Full-height half-length
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth from CPU_1
Supported NCSI function
Internal I/O
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery switch

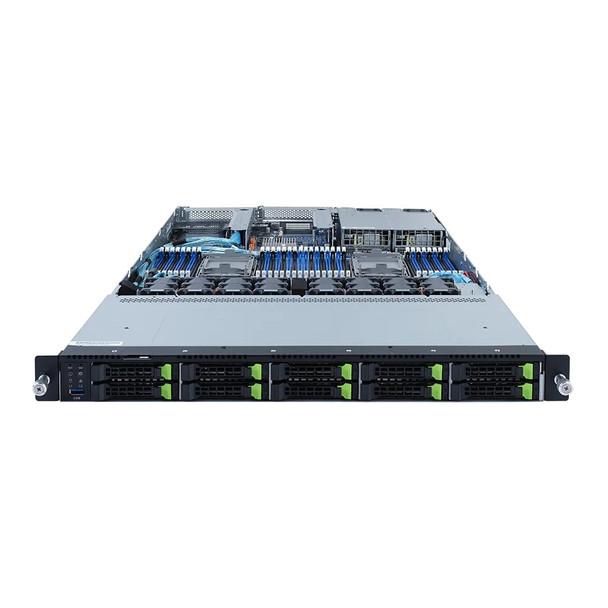

Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

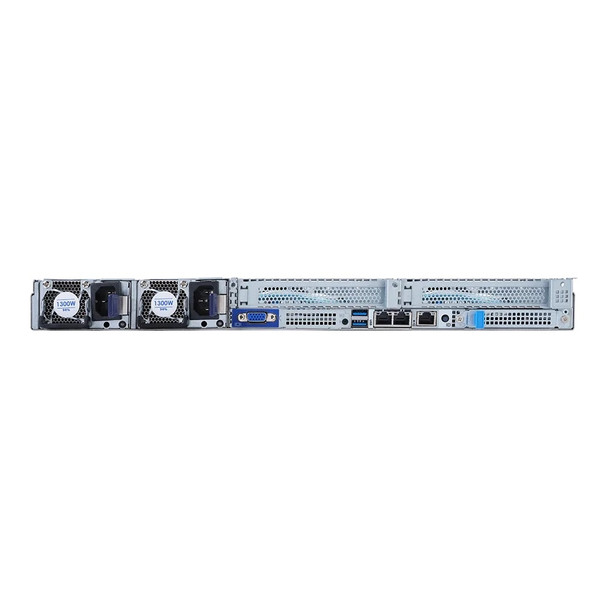

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
10 x 2.5" SATA/SAS/NVMe hybrid ports
Bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s per port
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
1+1 80 PLUS Platinum 1300W redundant PSU
AC Input:
- 100-240V/ 12-7A, 50-60Hz
- 200-240V/ 8A, 50-60Hz
DC Input:
240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
