Description
Marketing Information

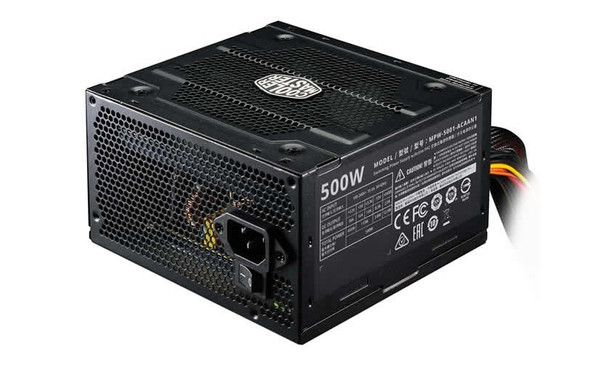

ELITE V3
The new Elite V3 power supply is a dependable choice for the everyday PC user. The included 120mm quiet fan, PCI-E support, and global 3 year warranty delivers a PSU that provides function and resilience you can count on. It's the perfect option for users and applications that don't require 80 Plus efficiency to get the job done. This power supply has been engineered for reliability with a focus on reducing random shutdowns in brownout conditions when power sources are unstable. The Elite V3 is a complete solution delivering powerful stability in a small package for an affordable price.
The new Elite V3 power supply is a dependable choice for the everyday PC user. The included 120mm quiet fan, PCI-E support, and global 3 year warranty delivers a PSU that provides function and resilience you can count on. It's the perfect option for users and applications that don't require 80 Plus efficiency to get the job done. This power supply has been engineered for reliability with a focus on reducing random shutdowns in brownout conditions when power sources are unstable. The Elite V3 is a complete solution delivering powerful stability in a small package for an affordable price.
Detail Specifications
| Product Name Elite V3 600W |
| Model MPW-6001-ACAAN1-US |
| ATX Version Intel ATX 12V V2.31 |
| PFC Active PFC (>0.9) |
| Input Voltage 100-240Vac |
| Input Current 10-5A |
| Input Frequency 50-60Hz |
| Fan Size 120mm |
| Fan Bearing Sleeve Fan |
| Powergood Signal 100-500ms |
| Hold Up Time >10ms at 100% Load |
| Efficiency 75% at Typical Load |
| MTBF >100,000 Hours |
| Operating Temperature 10 to 40oC |
| Protection OVP / OPP / OTP / SCP |
| Regulatory TUV, cTUVus, CE, FCC, BSMI |
| Connector M/B 20+4 Pin 1 CPU 12V 4+4 Pin 1 SATA 6 Peripheral 4 Pin 3 FDD Cable 4 Pin 1 PCI-e 6+2 Pin 2 |
| Item Dimension (L inchxW inchxH inch) 9 x 8 x 4 Weight 4.28lb Warranty Information 3 Years |
