Description
New-Gen WiFi Standard - WiFi 6(802.11ax) standard supporting MU-MIMO and OFDMA technology for better efficiency and throughput.
Ultra-fast WiFi Speed - RT-AX1800S supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps - 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.
Increase Capacity and Efficiency - Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
5 Gigabit ports - One Gigabit WAN port and four Gigabit LAN ports, 10X faster than 100Base T Ethernet.
Protection for Your Home Network - Aiprotection powered by Trend Micro, blocks internet security threats for all your connected smart devices.
Get Your Home Ready for WiFi 6 (802.11ax)
The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest WiFi 6(802.11ax) standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.
It requires 802.11ax-compatible devices to enjoy the benefits brought by WiFi 6(802.11ax) standard.
Next-Gen WiFi Speed

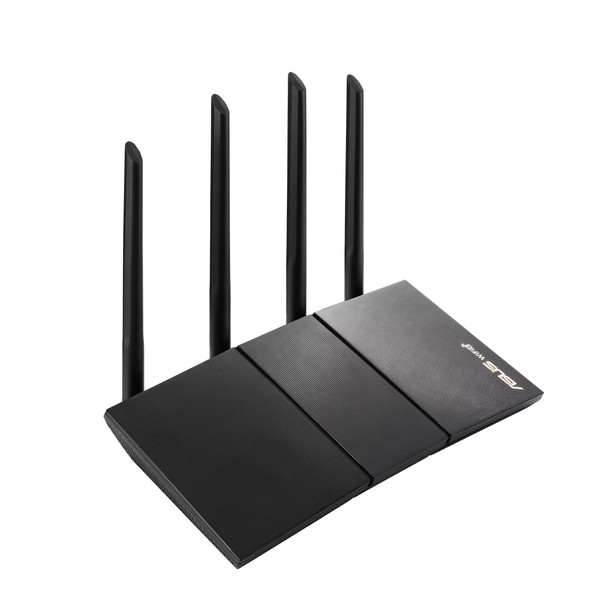

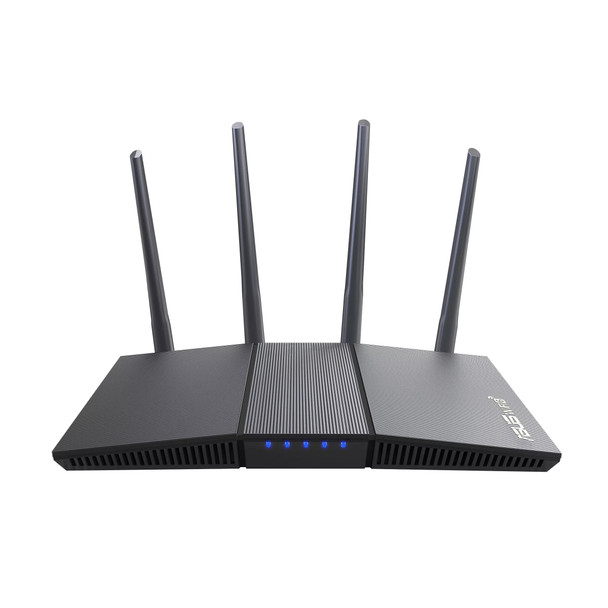

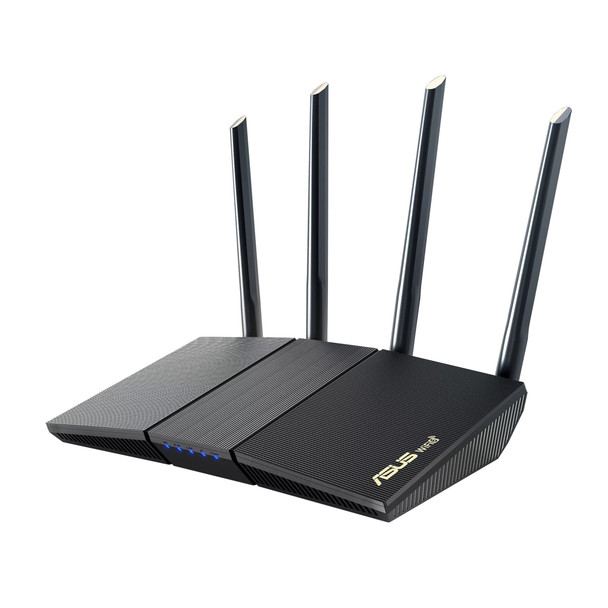

RT-AX1800S is a 2x2 dual-band WiFi router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps - 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band - RT-AX1800S is 1.5X faster than 802.11ac 2x2 dual-band routers.
Model Name
RT-AX1800S
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
AX technology
Yes
Antenna
External antenna x 4
Transmit/Receive
2.4GHz 2x2
5GHz 2x2
Processor
Dual-code (4 VPE)
Memory
128 MB Flash
256 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency
2.4G Hz / 5 GHz

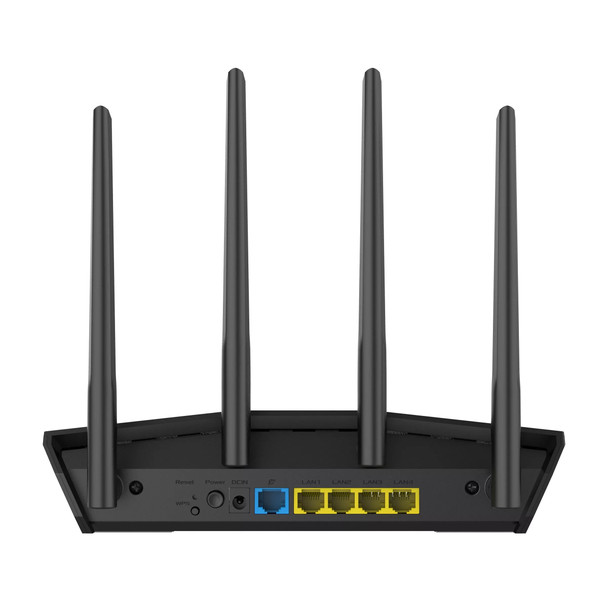

PortsRJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
Button
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 1
2.4G x 1
5G x 1
LAN x 1
WAN x 1
Power Supply
AC Input : 110V-240V(50-60Hz)
DC Output : 12 V with max. 1.5A current
Package content
RT-AX1800S
RJ45 x1
Adapter x1
QSG x1
Warranty Card x1
AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP
ASUS Router APP : Yes
Game
Game Boost/acceleration : No
Alexa
Support Alexa skil : Yes
IFTTT
Support IFTTT : No
