Description

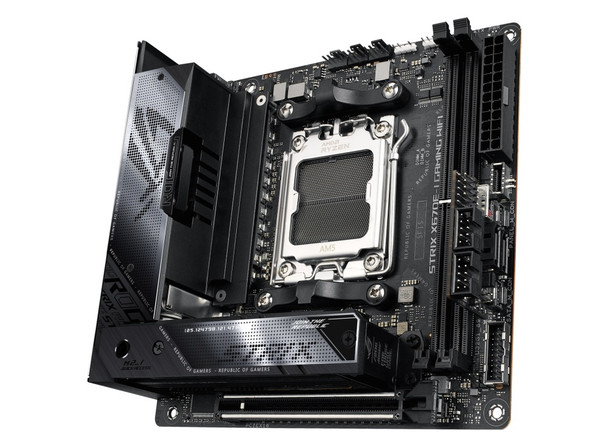

The ROG Strix X670E-I Gaming WiFi crams the latest tech into the diminutive mini-ITX footprint and then branches out with the ROG Hive to put vital controls and I/O at your fingertips. At motherboard level, PCIe 5.0 slots for graphics and storage ride alongside dual-channel DDR5 to bring large-scale bandwidth to games and CPU-intensive workloads. Heavyweight power delivery and vertically-stacked heatsinks crush thermals and lay a potent foundation for exclusive ROG overclocking tools to push performance boundaries. With all this and more, this tiny titan dishes up a space-saving AM5 build that allows you to comfortably host larger displays and a spread of ROG gaming peripherals on your desktop.
ALL-ROUND PERFORMANCE
Robust power delivery, innovative overclocking tools, and comprehensive cooling controls make the ROG Strix X670E-I more than a match for larger rivals. Load up and freely customize your AMD Ryzen 7000 Series processor to shred through everything.
PCIE PERFORMANCE
The ROG Strix X670E-I neatly increases mini-ITX expansion capabilities with vertically-stacked PCIe 5.0 and PCIe 4.0 M.2 slots. PCIe 5.0 support also extends to the x16 slot, which is reinforced with SafeSlot, providing structural support and bandwidth to handle large and powerful next-gen GPUs.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
CPU
AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Refer to www.asus.com for CPU support list.
Chipset
AMD X670
Memory
2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x HDMI port
2 x USB4 ports support USB Type-C display outputs
Supports 4K at 60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors or graphic cards resolution.
Expansion Slots
AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot(s)
Storage
Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1.
Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports
Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless and Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB
Rear USB (Total 10 ports)
2 x USB4 port(s) with Intel JHL8540 USB4
controller (2 x USB Type-C)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 ports)
1 xUSB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II C (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0 ports
Audio
ROG High Definition Audio CODEC ALC4050
- Supports: Jack-detection
- High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- ROG Hyper-Grounding Technology
- ESS SABRE9260Q DAC
- Silver-plated audio jacks
- Optical S/PDIF out port USB Type-C port with indepent power solution
- Dedicated audio PCB layers
All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE
Back Panel I/O Ports
2 x USB4 port(s) with Intel JHL8540 USB4
controller (2 x USB Type-C)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE)
3 x USB 2.0 port(s) (3 x Type-A)
1 x HDMI port
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C )
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x RTC Battery header
1 x Thermal Sensor header
1 x 2 pin Power_BTN header
2 x USB Type-C connectors to Install ROG FPS-II card
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration mode switch
2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports
Special Features
Extreme Engine Digi+
-5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
- M.2 Chipset Fan
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
ROG STRIX HIVE
1 x USB Type-C connects to Motherboard
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C)
1 x USB 2.0 port(s) (1 x Type-A with BIOS FlashBack)
1 x Headphone jack with Mic in
1 x Mic in jack with Optical S/PDIF out
1 x EZ mode PBO button
1 x FlexKey button
1 x BIOS FlashBack button
1 x Volume Control Knob with Mute Button
Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide
Operating System
Windows 11, Windows 10 64-bit
Form Factor
Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm)
Item Dimension (L"xW"xH")
11 x 9 x 5
Weight
4 lbs
Warranty Information
3 Years
