Description
Marketing Information

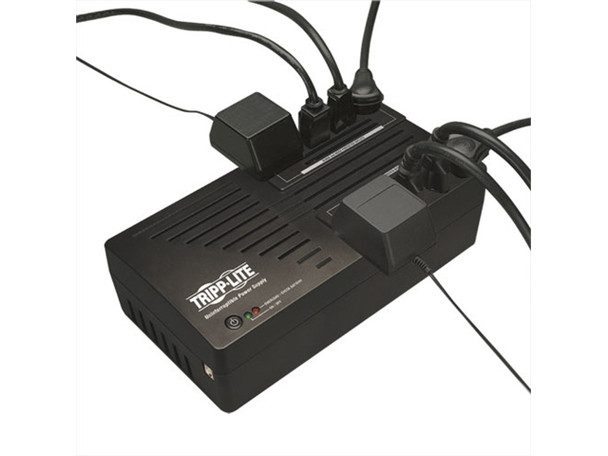

Tripp Lite's AVR700U line-interactive UPS offers complete protection for PCs, network workstations and other sensitive electronics in an ultra-compact, wall mountable housing. Prevents data loss and system downtime by providing battery-supported AC output during blackouts and Automatic Voltage Regulation (AVR) during brownouts and overvoltages. 98% full load efficiency rating offers reduced energy consumption and reduced heat output. Eco-friendly design with hot-swappable internal batteries meets strict RoHS environmental standards. 8 total NEMA 5-15R outlets. 4 battery supported outlets for computer, monitor and other vital system peripherals, plus 4 additional surge suppression-only outlets for printers and other accessories not requiring battery support. Single-line telephone suppression jacks protect modems, fax machines, cordless phones and other equipment with standard dialup or DSL RJ-11 phone line connection.
USB port with included cable and PowerAlert monitoring software (available via free download from www.tripplite.com) enables safe unattended system shutdown in the case of extended power failure. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 700VA / 350 watt power handling ability supports entry-level PCs for up to 17 minutes during power failures.
USB port with included cable and PowerAlert monitoring software (available via free download from www.tripplite.com) enables safe unattended system shutdown in the case of extended power failure. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 700VA / 350 watt power handling ability supports entry-level PCs for up to 17 minutes during power failures.
Detail Specifications
| OUTPUT : Output Volt Amp Capacity (VA): 700 Output Watt Capacity (watts): 350 Nominal Output Voltage(s) Supported : 115V 120V Frequency compatibility: 60 Hz Output voltage regulation (line mode): +8%, -21% Output voltage regulation (Battery mode): 115V (+/- 5%) Built-in UPS output receptacles : 8 5-15R outlet(s) Surge suppression only outlets : 4 UPS outlets, 4 surge-only outlets Output AC waveform (AC mode): Sine wave Output AC waveform (battery mode): PWM sine wave |
| INPUT : Rated input current (at maximum load) : 12A Nominal Input Voltage(s) Supported: 120V AC UPS input connection type: 5-15P UPS Input cord length (ft.): 6 UPS Input cord length (m): 1.8 Recommended Electrical Service : 15A 120V |
| BATTERY : Full load runtime (minutes) : 2.3 min. (350w) Half load runtime (minutes) : 8.5 min. (175w) DC system voltage (VDC): 12 Battery Access : Battery access door Battery replacement description: Hot-swappable, user replaceable batteries |
| LEDS ALARMS SWITCHES : LED Indicators : 2 LEDs indicate power status and overload/check battery status Alarms: Audible alarm indicates power-failure and overload status Switches: Combination switch controls on/off power status and self-test operation |
| SURGE / NOISE SUPPRESSION: UPS AC suppression joule rating : 420 UPS AC suppression response time: Instantaneous UPS Dataline suppression : 1 line TEL/DSL (1 in / 1 out) EMI / RFI AC noise suppression : Yes |
| PHYSICAL : Installation form factors supported with included accessories :Tower Ultra-compact desktop Wallmount (using keyhole mounting tabs) Primary form factor: Desktop UPS / Power Module dimensions in primary form factor (height x width x depth / inches): 3.5 x 11.3 x 6 UPS / Power Module dimensions in primary form factor (height x width x depth / cm): 8.9 x 28.7 x 15.2 UPS / Power Module weight (lbs): 11 UPS / Power Module weight (kg) :5 |
| LINE / BATTERY TRANSFER : Transfer time: 2-4 milliseconds Low voltage transfer to battery power (setpoint) :83 High voltage transfer to battery power (setpoint) :147 |
| SPECIAL FEATURES : Grounding lug :Included Cold Start (startup in battery mode during a power failure): Cold-start operation supported High availability UPS features: Hot swappable batteries Green high efficiency features: Greater than 95% efficiency - GREEN UPS |
| CERTIFICATIONS : UPS Certifications :Tested to UL1778 (USA) Tested to CSA (Canada) Tested to NOM (Mexico) Meets FCC Part 15 Category B (EMI ) |
| Warranty Information : 3 Years |
| Package Includes: AVR700U UPS System USB cable Instruction manual with warranty information |
|
|
